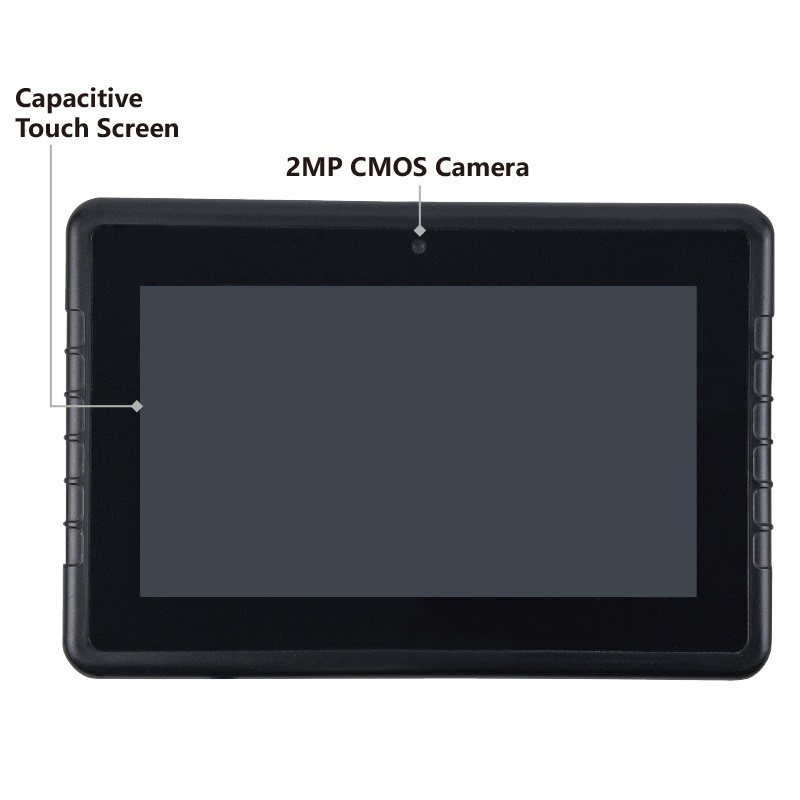

  • v7s-1
  • v7s-8
  • v7s-2
  • v7s-4
  • v7s-5
  • v7s-7

V7S

●Rugged enclosure design with IP65 rating
●Rockchip RK3568,2.0GHz
●Android 11 operating system
●Integrated Mali-G52-2EE GPU, up to 800MHz
●Built-in 2.0MP CMOS front camera, built-in stereo speakers(2W,8Q)
●Built-in 4G/3G cellular, WiFi, Bluetooth, GPS+GLONASS+BEIDOU (optional)
●Built-in and Extended I/O interfaces USB 3.0, TF(up to 128 GB), RJ45, 1xRS232, RS422/485, reverse gear trigger, CAN bus, AV In etc

Category: Tags: , , ,


Download

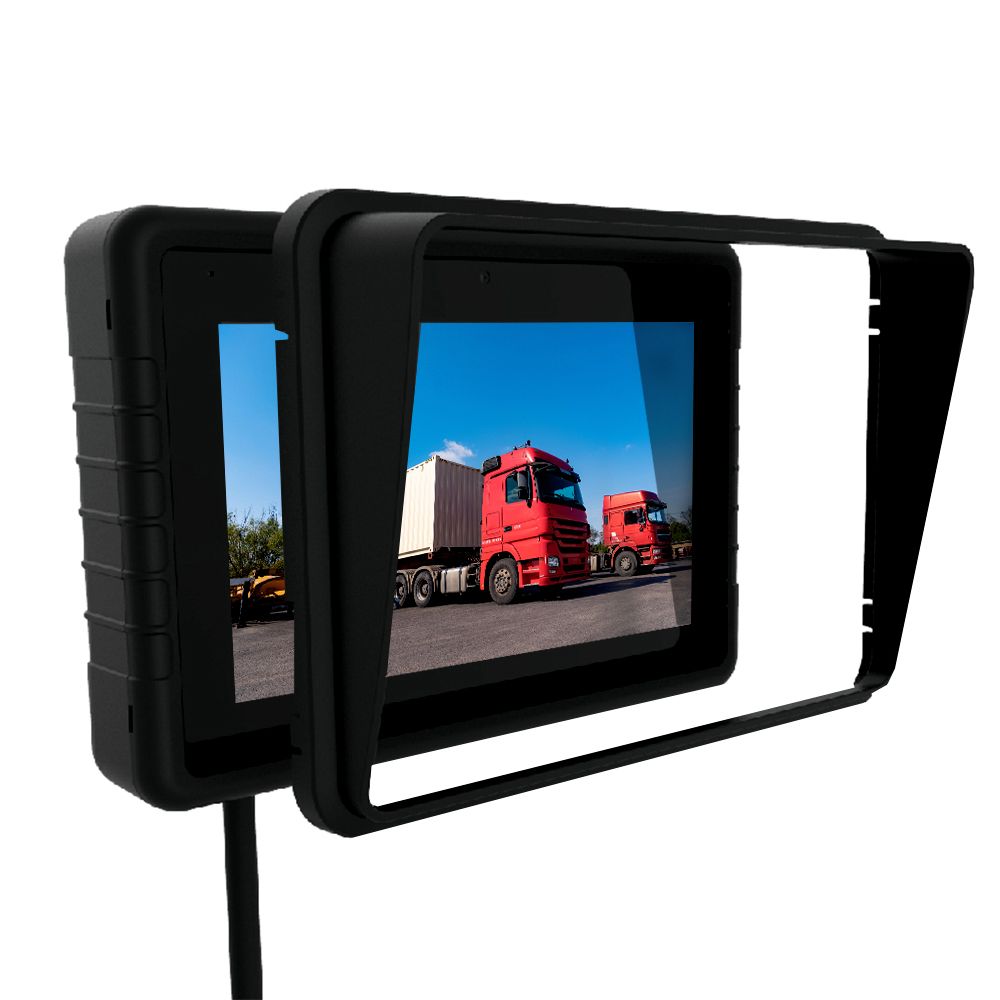

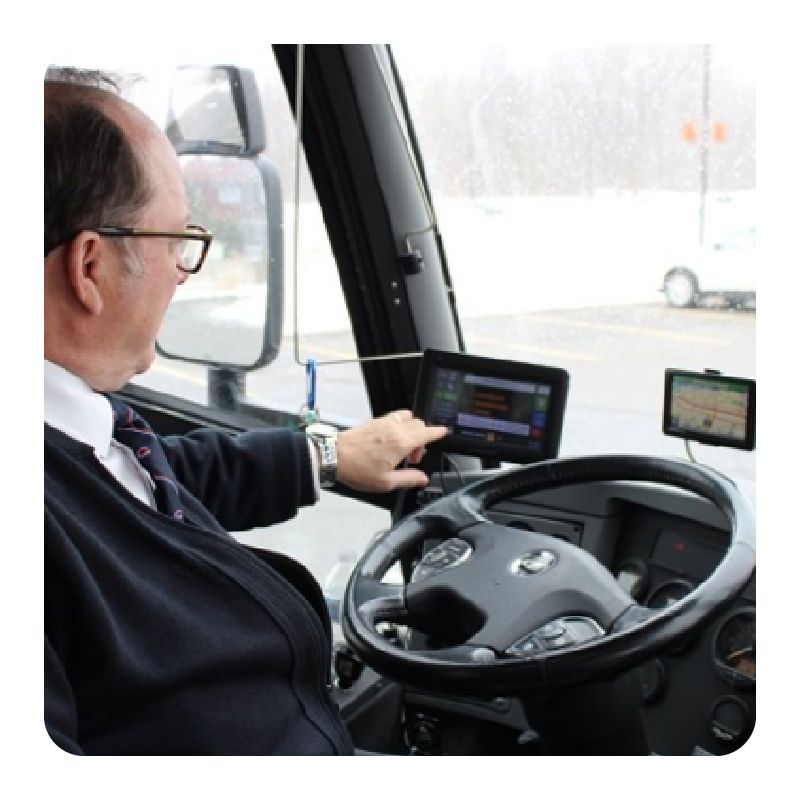

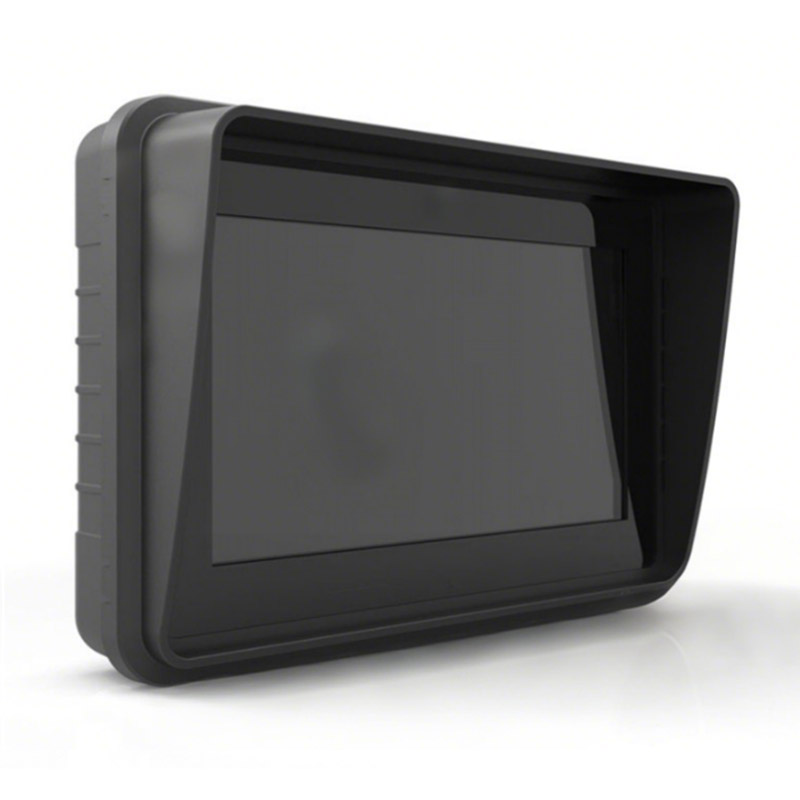

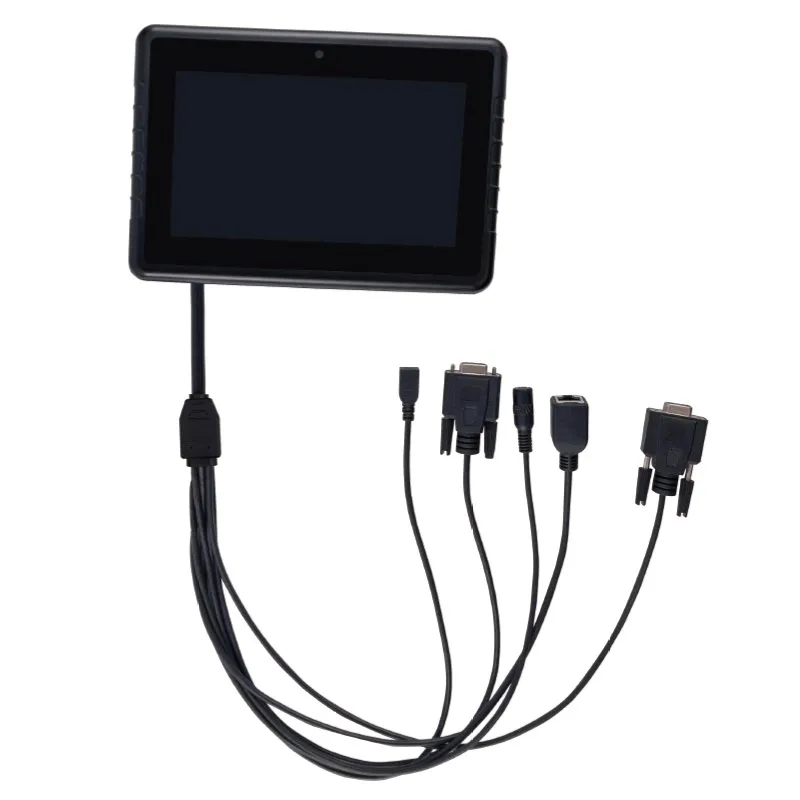

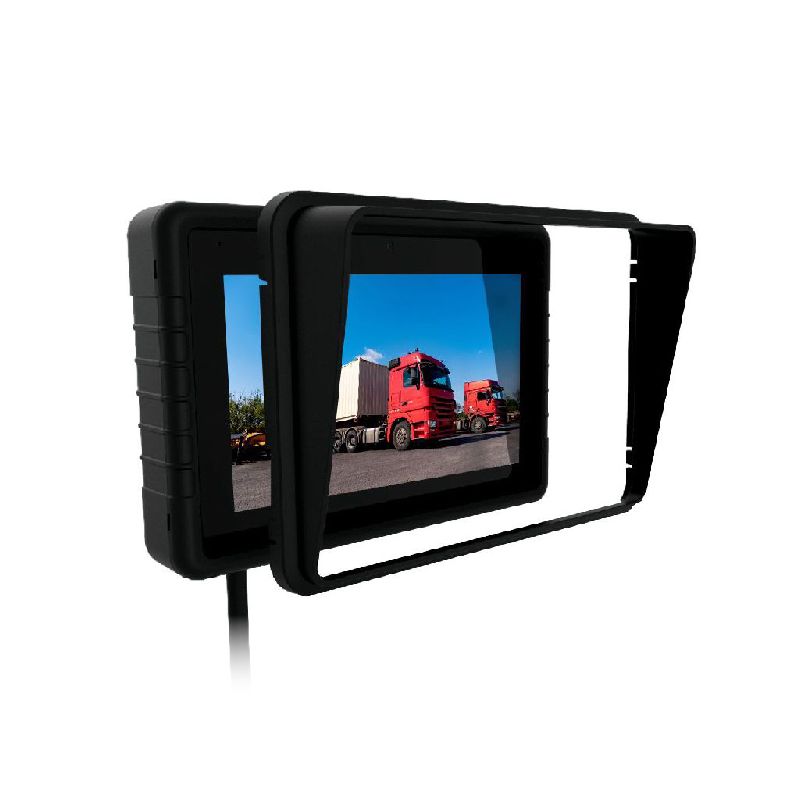

Equipping the in-vehicle workforce with digitalization to keep in coordination with their team, could add up to an immense boost in productivity. Waysion recognizes the importance of connectivity to the workers of the vehicle industry. V7S Mobile Data Terminal of Waysion is the technological revolution in the vehicle industry. V7S is an Android-based 7-inch mobile data terminal that is powered by RK3568 Quad-core Cortex-A55 processor. The newly designed enclosure provides a good ingress protection rating of IP65. With a sunshade hood, it can work in the cab during the daytime. V7S integrates a variety of communication modules such as Wi-Fi, Bluetooth, 4G/3G cellular, and GPS. For more peripheral devices, it has a pigtail cable to meet various I/O ports, like CAN bus, RS232, RJ45, USB OTG, AV in etc.

V7-23

Ultra-Durable LCD Protection

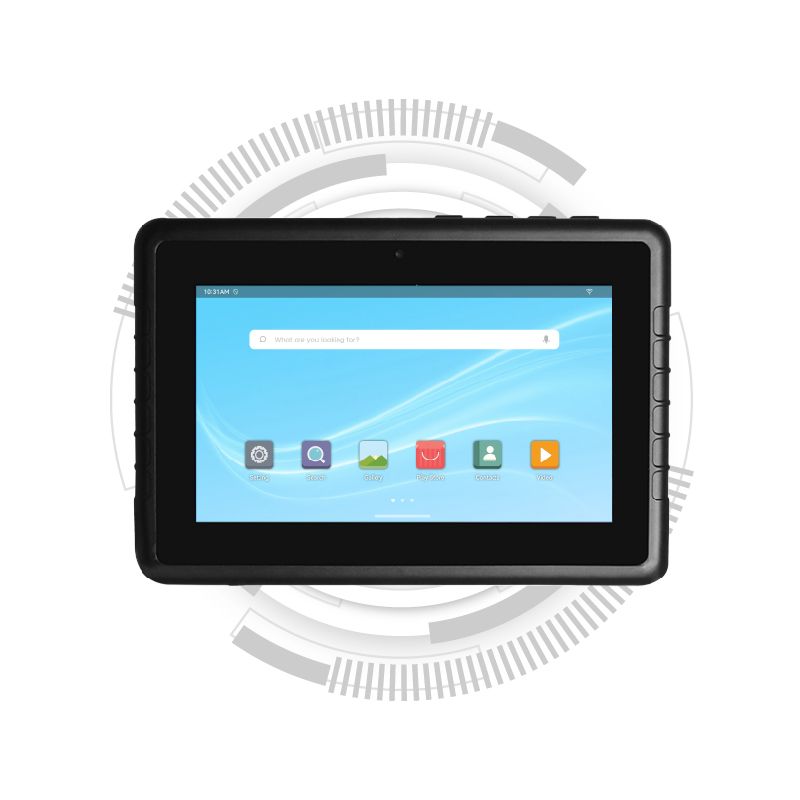

V7S has the 7-inch LCD screen with a capacitive multi-touch panel. That means no stress over the scratch, drop, or impact, with super-strong insurance construction. While the remainder of your gadget is effectively and completely secured by a strong metal, elastic, and plastic fenced-in area.

Provide Extreme Efficiency

V7S owns the Android 11 operating system that claims as the speaker of your languages. Through the newly added features of Android 11, V7S supports not only efficient performance, user-friendly UI, and APIs but also app shortcuts, split-screen multi-tasking, revamped notifications and so many other functions.

v7-2
V7s

Multiple Connections for External Equipment

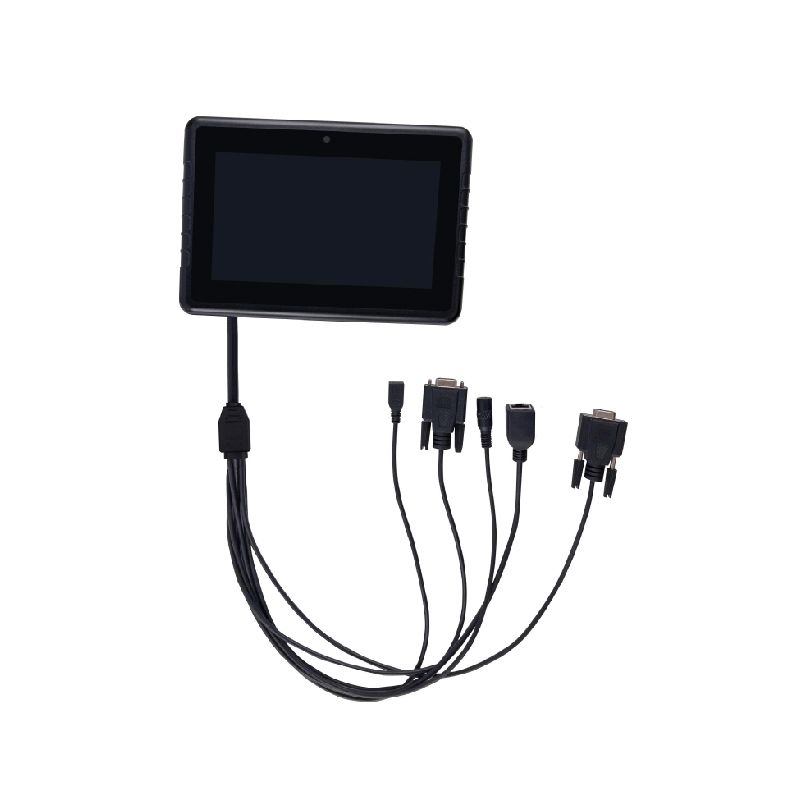

V7S also provides multiple connections for external equipment. It can be extended with USB, OTG, RS232 and Ethernet, CAN bus, AV in etc. Through the extension of MDT with other peripherals, more industrial applications scenarios can be covered.

Limitless Wireless Connectivity

Take the whole office with you, regardless of where you go in the field, with a complete remote network, including Wi-Fi or potentially bursting
quick 4G LTE Connectivity, versatile for your selection of transporters at least.

V7s-5

Specifications

Model V7S
Core Processor 64bit RK3568 Quad-core Cortex-A55, up to 2.0GHz
Graphic Mali-G52-2EE, 800MHz
RAM 2GB(4GB optional) LPDDR4
ROM 16GB(32GB optional) eMMC
OS Android 11
Display LCD panel 7-inch TFT-LCD, LED backlight
Resolutions 1024 × 600
Brightness 500 cd/m2
Contrast Ratio 800:1
View Angle (°) 75/75(L/R), 70/75(U/D)
Touch panel G+G multi-touch capacitive touch panel
wireless WiFi IEEE 802.11 b/g/n (optional)
Bluetooth Ver 4.0 (optional)
Cellular 4G/3G (optional)
Positioning Integrated GPS+GLONASS+BEIDOU(optional)
Multimedia Video Video Decode: 4K@60fps H.264&H.265&VP9 Profile0/2 video decode, 1080P multi-video decode
Video Encode:1080P video encoding for H.264 and H.265
Audio MP3, WMA, OGG, APE, FLAC, AAC etc.
Mechanical Dimensions 200(L)x136(W)x36(H) mm
Weight 0.79kg

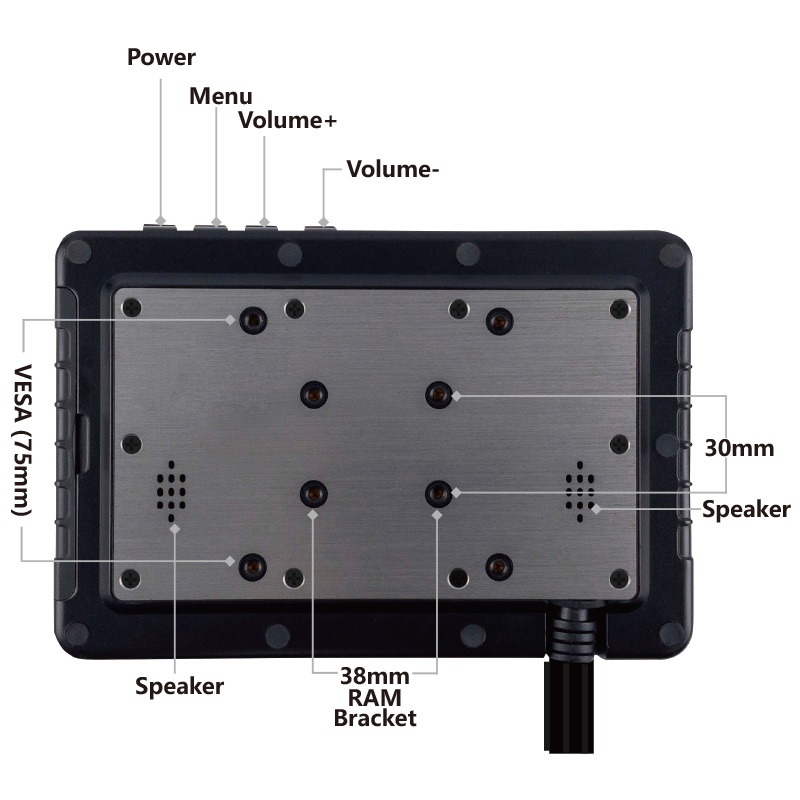

Mount 75x75mm VESA or 38x30mm RAM compliant
Certification CE/E-mark/RCM compliant
Accessories Standard AC/DC adaptor or car power adaptor(optional)
Extended cable
Optional Sunshade
User Interface Speaker Built-in speaker(2W, 8Ω) x 2
Microphone Internal microphone
Camera 2MP CMOS (front)

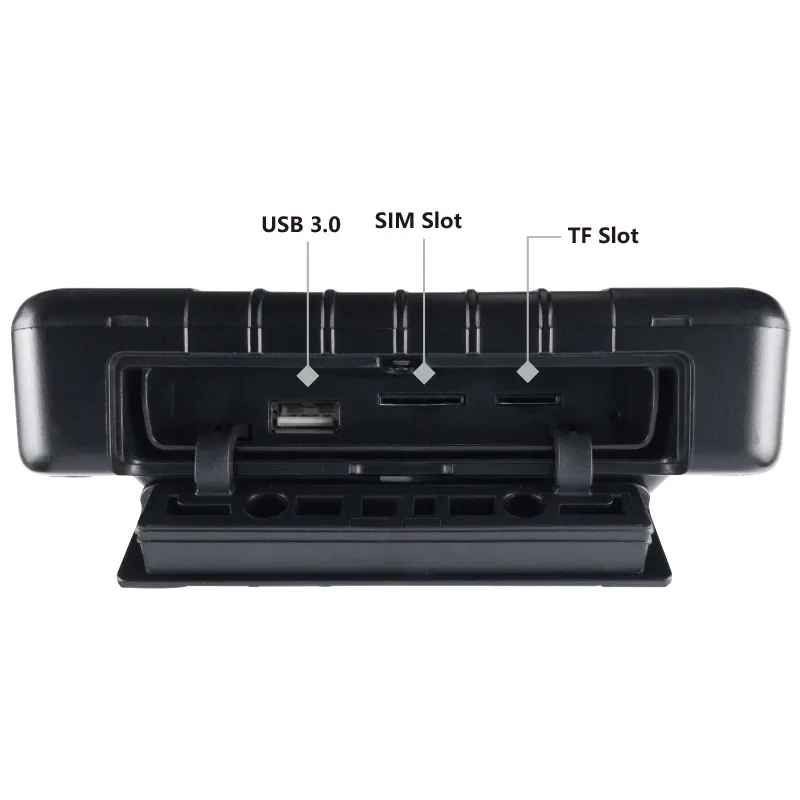

Onboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x USB 3.0 Host

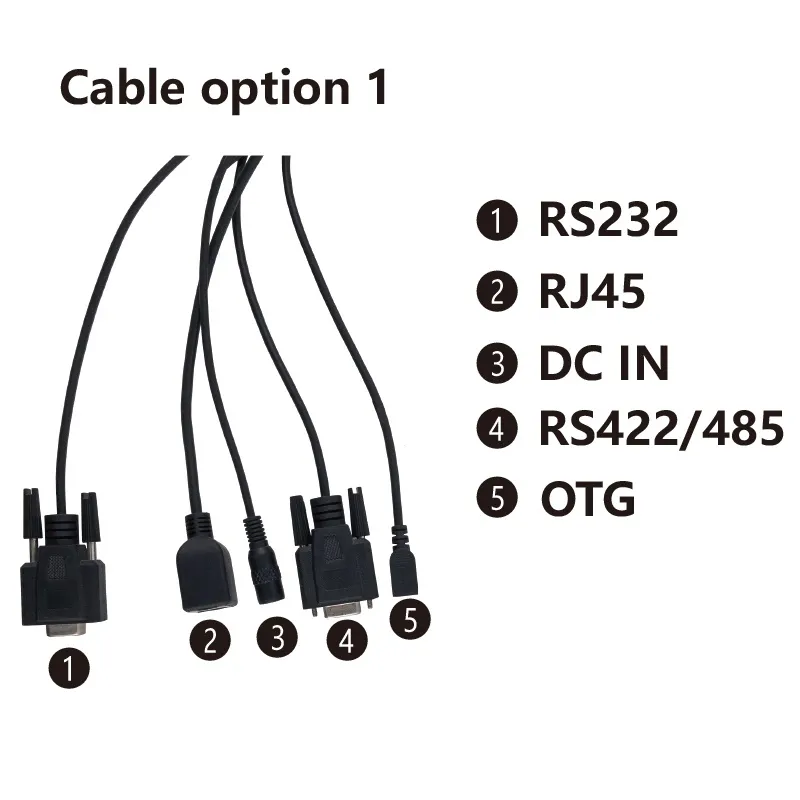

Extended
I/O ports
(on pigtail cable)
1 x DC in
1 x RJ45(10/100/1000 Mbps) (support POE)
1 x RS422 (RS485 optional)
1 x RS232
1 x AV IN (support NTSC) (optional)
1 x reverse gear trigger(optional)
1 x ACC
1 x OTG 2.0
2 x CAN bus(optional)
Function Key Power, Home, Volume+, Volume-, Reset
Power Light LED light
Power Supply DC In 12V DC (9~36V)
Battery 3.7V 1800mAh, Lithium-Polymer battery pack
Power Consumption Normal mode ≤6W
Charging mode ≤10W
Environment Operating Temp -20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp -20°C~80°C
IP Rating IP65
