Rugged Tablet For Precision Agriculture

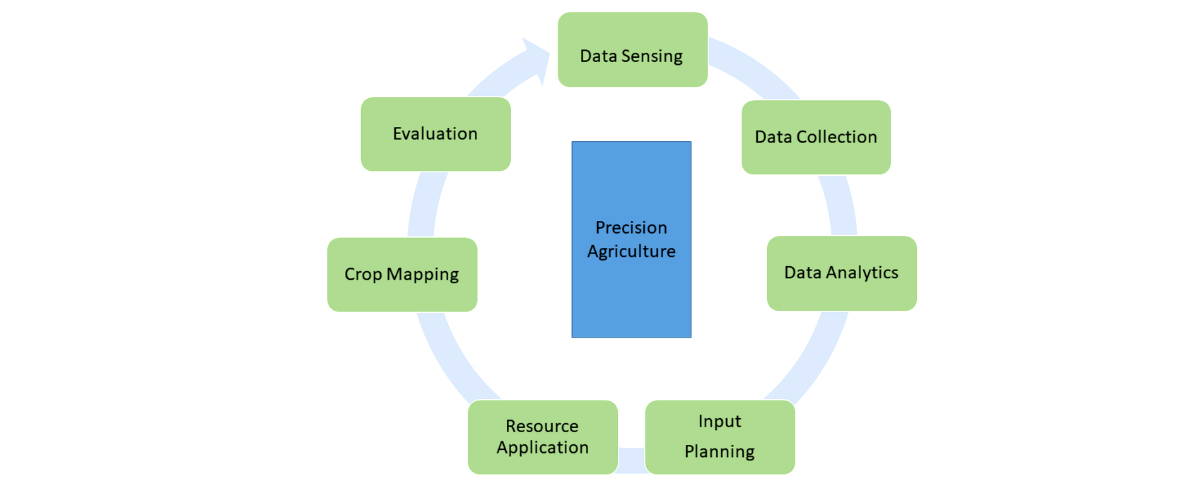

The Digital Backbone of Modern Precision Agriculture
Modern agriculture is evolving fast. Precision farming now relies on a network of GNSS-guided equipment, multi-sensor data, and real-time control terminals. In this ecosystem, field operators and integrators need hardware that can withstand harsh outdoor conditions while supporting seamless machine-to-cloud connectivity.
Agricultural Challenges That Require Smarter Terminals
● Ruggedness: Field equipment operates in high-dust, high-moisture, and vibration-heavy environments. Tablets must resist all three.
● Connectivity Gaps: Many rural areas lack stable Wi-Fi or cellular coverage; wired interfaces and data radio support are essential.
● Protocol Diversity: Tractors and implements often use CAN-based standards like J1939, plus RS232/RS485-based sensors. Compatibility is critical.
● Visual Monitoring: Operators require AHD camera input for equipment attachment views, planting inspection, and reverse safety.
● Precision Positioning: Centimeter-level accuracy via RTK is key for seed placement, spraying boundaries, and route tracking.
● Data Fusion & Real-Time Response: Complex agricultural systems need hardware that supports multiple inputs and outputs simultaneously.

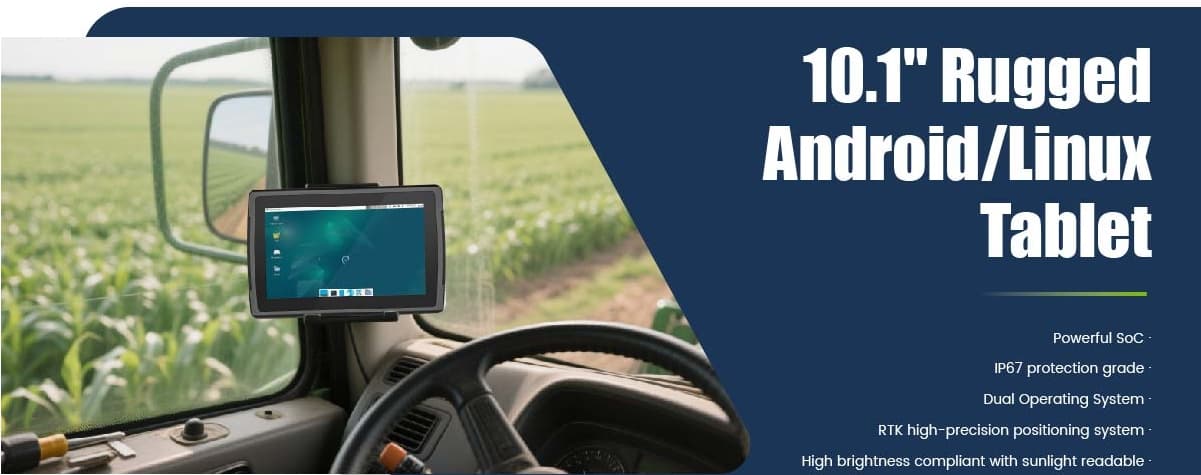

SYVR10R: A Rugged Edge Platform for Agricultural Vehicles
WAYSION SYVR10R is a 10.1” rugged terminal combining industrial-grade I/O, dual CAN bus, RTK positioning, and multi-camera video input, enabling it to act as a real-time controller, data gateway, and video recorder in the field.
Key Features for Precision Agriculture:
CAN Bus (Dual Channel, J1939 Supported)
● Interfaces directly with tractor CAN lines, implement controllers, engine ECUs
● Compatible with mainstream ag machinery brands and protocols
RTK High-Precision GNSS (Optional)
● Supports dual-antenna orientation and centimeter-level positioning
● BDS, GPS, GLONASS, Galileo, QZSS, SBAS—all covered
● Ideal for auto-steering, field mapping, and row tracking

4×AHD Camera Input Onboard
● Real-time monitoring of sowing units, sprayers, and trailer attachments
● Enables in-cabin views of rear implements, crop flow, or blind zones
● Video stream can be previewed or recorded locally

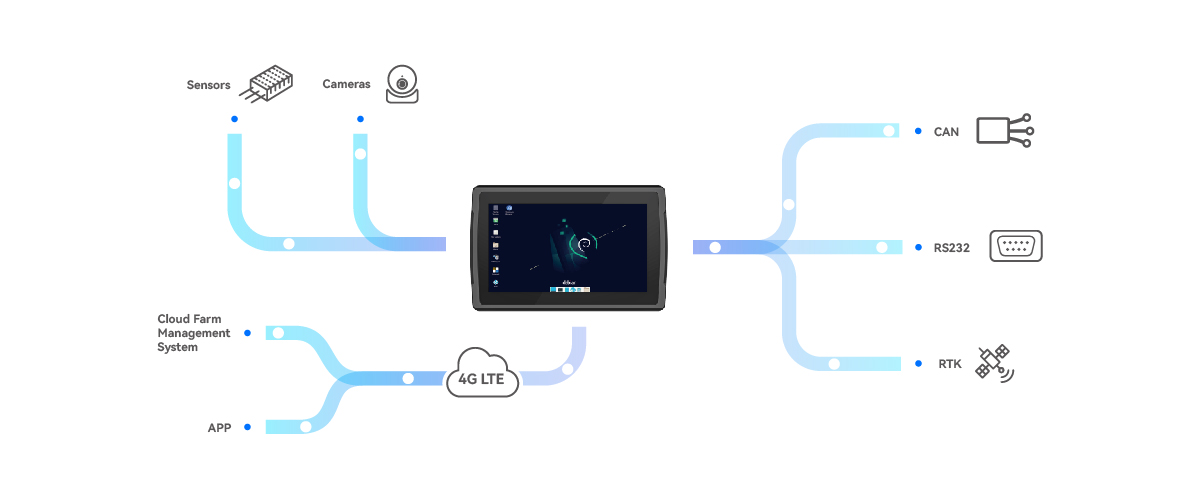

Multiple Interfaces for Sensor & Control Integration
● RS232 / RS485, 2× IO (DI/DO), Deutsch 26-Pin optional
● Connects to seed rate sensors, fertilizer flow meters, tank level monitors, and more
● One-click ignition detection and power control via ACC line

Android + Linux Dual System
● Flexibility for both application-layer (Android) and protocol-layer (Linux/Modbus/CANopen) development
● Runs precision agriculture apps, data loggers, and control logic simultaneously
IP67, -20~60°C Operation, RAM Mounting Ready
● Withstands water spray, soil dust, and vibration
● Suitable for open cabin tractors, irrigation machines, or mounted sprayer rigs
Application Examples
● Tractor-mounted row crop controller with AHD camera + RTK + dual CAN
● Sprayer control terminal with RS485-based liquid flow monitoring + CAN boom control
● Seeder status monitor with camera preview, local recording, and real-time alerts
● Tillage equipment hub for torque monitoring, hydraulic system alerts, and data collection
