Q777 Rugged Android Tablet for Fleet, Logistics & Field Teams
Empower your mobile workforce with the Q777. Featuring Android 14, RK3568 stability, and industrial-grade I/O for mission-critical logistics and ELD compliance hardware.
Q777 in 10 Seconds
- What it is: 7-inch IP65 vehicle-mounted Android 14 tablet with 4G LTE, GPS+GLONASS+BEIDOU, and ELD compliance
- Who it’s for: Trucking fleets, warehouse forklifts, mining, construction, public safety
- Why it matters: Automates HOS logging, survives dust/water/vibration, integrates with CAN bus/OBD-II, managed by MDM
Key Tech Specs for Fleet Deployment
| Feature | Spec | Why It Matters for Field Use |
|---|---|---|
| OS | Android 14 | Latest security patches, MDM-friendly |
| CPU | Rockchip RK3568, 2.0GHz Quad-core | Low power + smooth for ELD, WMS apps |
| Rugged Rating | IP65, 1.2m drop tested, MIL-STD-810H | Dust-tight, water jets, survives warehouse drops |
| Connectivity | 4G LTE, WiFi, BT, GPS+GLONASS+BEIDOU | Real-time tracking even in remote areas |
| Compliance | FMCSA ELD via SAE J1939 & OBD-II | Automates HOS, avoids DOT violations |
| I/O Ports | RS232, RS422/RS485, CAN, AHD camera in | Connects to truck sensors, forklift, cameras |
| Battery | 5000mAh, 12V DC 9-36V vehicle power | 3+ hours off-dock, all-day with vehicle |
| Mounting | VESA & RAM mounts, locking dock | Secure in-cab install, theft-proof |
| Operating Temp | -20°C to 70°C | Works in freezer warehouses & desert sites |
| MTBF | >50,000 hours | Designed for 24/7 fleet uptime |
Q777 Multi-Angle View
Rugged Design • Industrial Build • 360° Detail Showcase
Front View
7″ High-brightness IPS Display

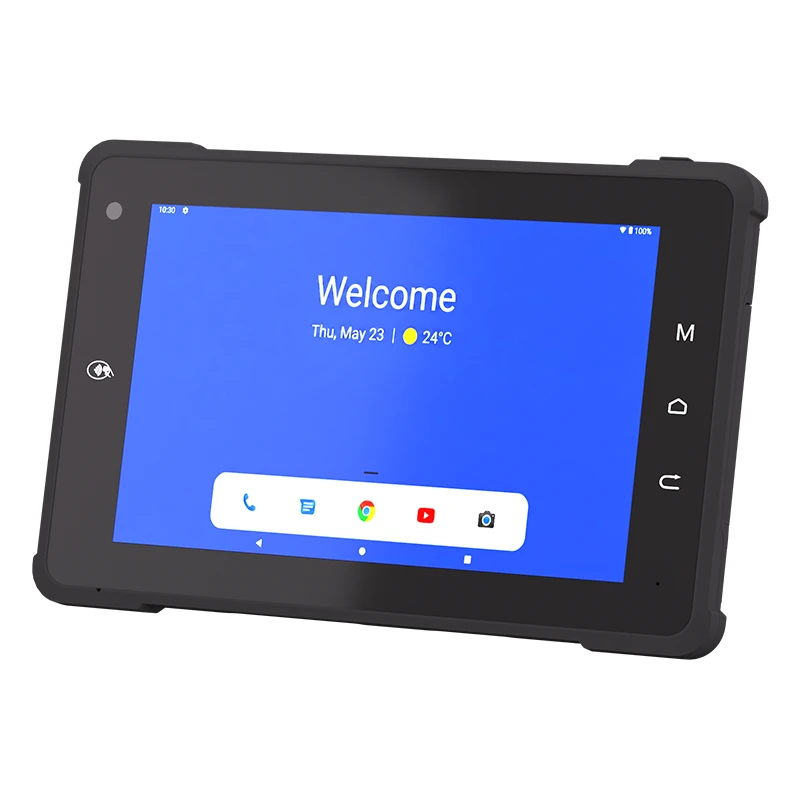

Front Angle
Android 14 Interface

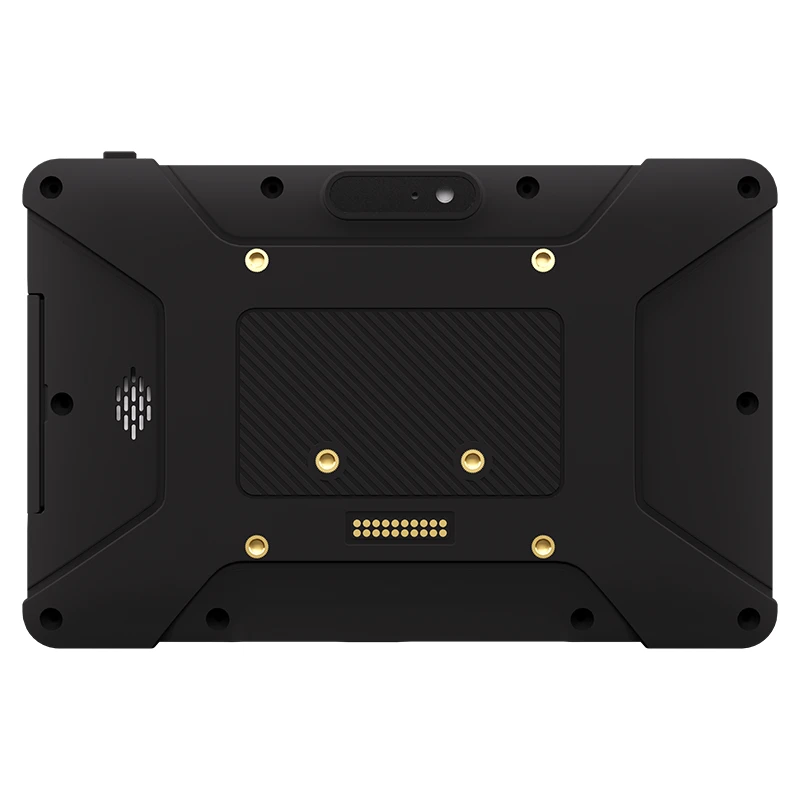

Rear View
Rugged Housing & VESA Mount

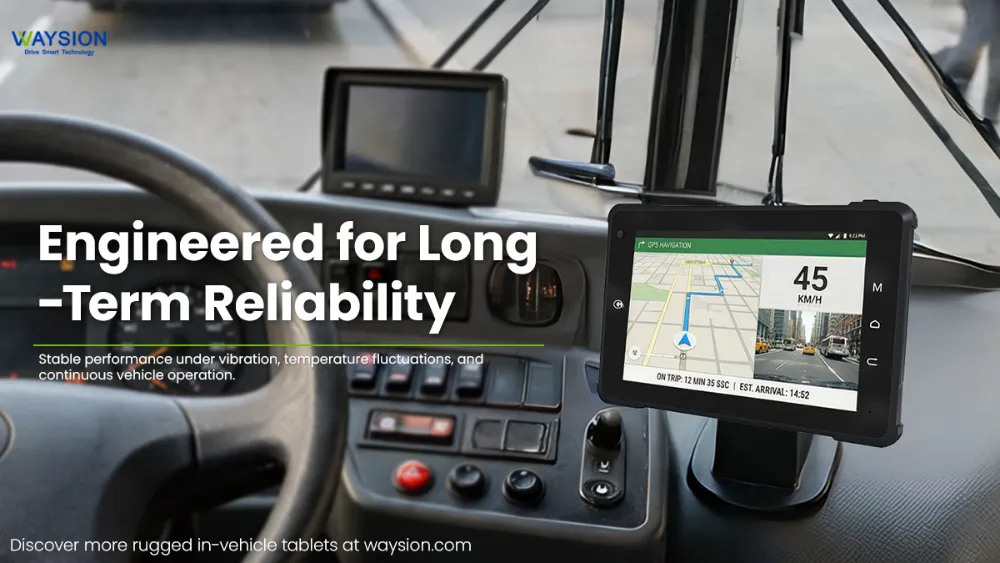

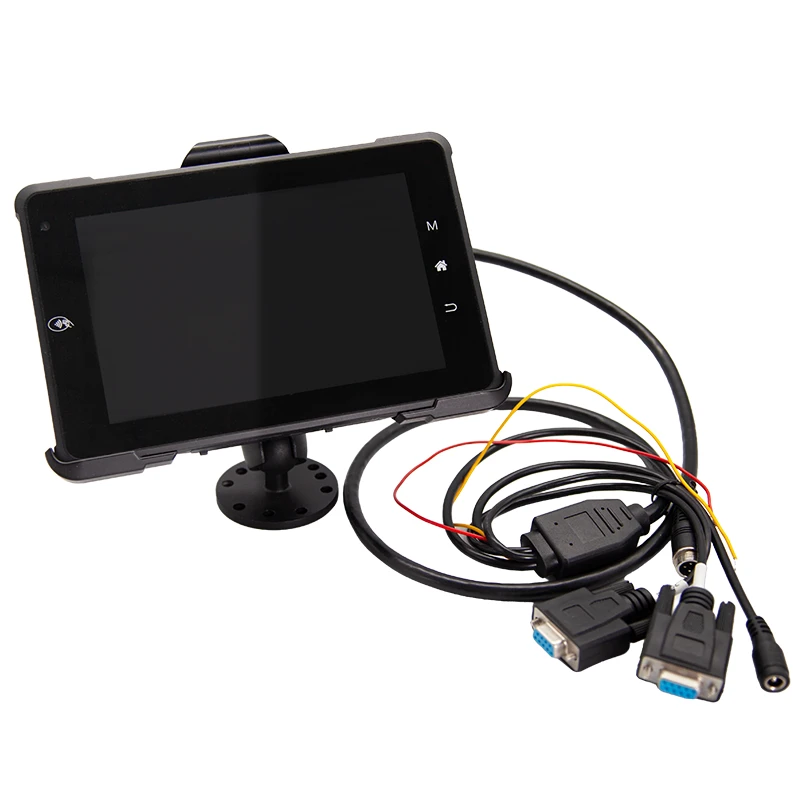

Vehicle Mount
Professional In-Cab Installation

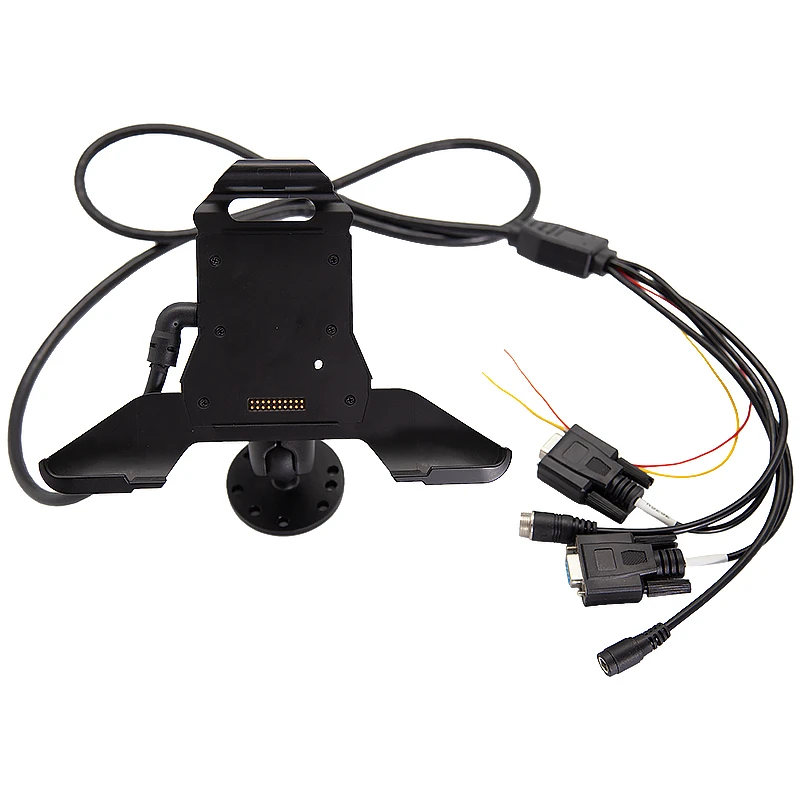

With Mount & Cables
Complete Mounting Solution

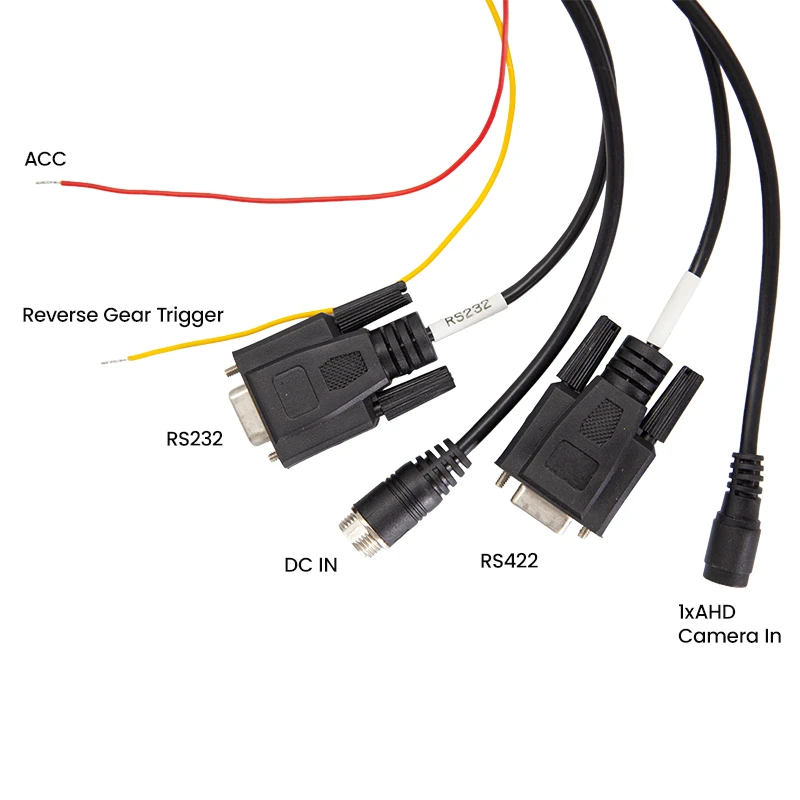

Interfaces & Cables
Rich Industrial I/O Ports
Industrial-Grade Features
Built for the toughest road conditions and 24/7 operations.
🛡
Ruggedized Reliability
IP65-rated for dust and water resistance. Certified MIL-STD-810H for shock, vibration, and drop protection in harsh environments.
⚡
Powerful RK3568 CPU
Equipped with Rockchip RK3568 Quad-Core CPU and up to 4GB RAM to handle complex ELD, routing, and fleet telematics apps smoothly.
📡
Elite Connectivity
High-speed 4G LTE, Dual-band Wi-Fi, and GNSS (GPS/GLONASS/Galileo) ensure constant communication and precise asset tracking.
🔌
Vehicle Interfaces
Integrated CAN-Bus (J1939/OBD-II support), RS232, and GPIO for direct vehicle engine communication and data acquisition.
Why Choose Q777
Comparison between Q777 and Standard Consumer Tablets
| Feature | Consumer Tablet | Waysion Q777 |
|---|---|---|
| Power Management | 5V USB (Unstable for vehicles) | 9-36V Wide Voltage + ACC Ignition Control |
| Temperature Range | 0°C ~ 35°C (Shutdowns in heat) | -20°C ~ 70°C (All-weather performance) |
| Mechanical Mounting | Suction Cups (Fragile) | Mount kit / VESA Standard Support |
| I/O Expansion | None (Requires dongles) | Built-in RS232, RS485, CAN Bus, AHD Input |
Deployment Scenarios & Solutions

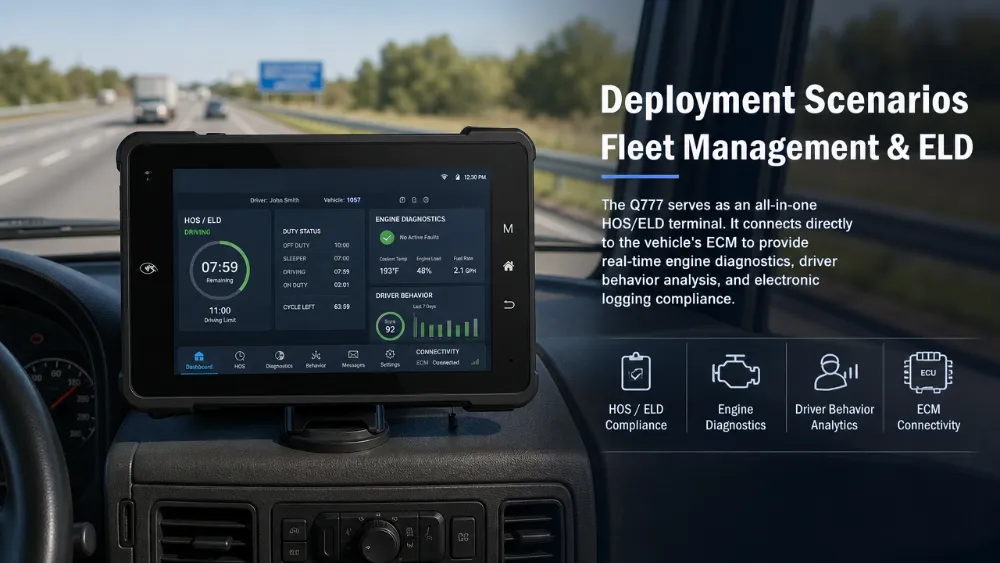

Fleet Management & ELD
The Q777 serves as an all-in-one HOS/ELD terminal. It connects directly to the vehicle’s ECM via J1939 to provide real-time engine diagnostics, driver behavior analysis, and FMCSA compliance.

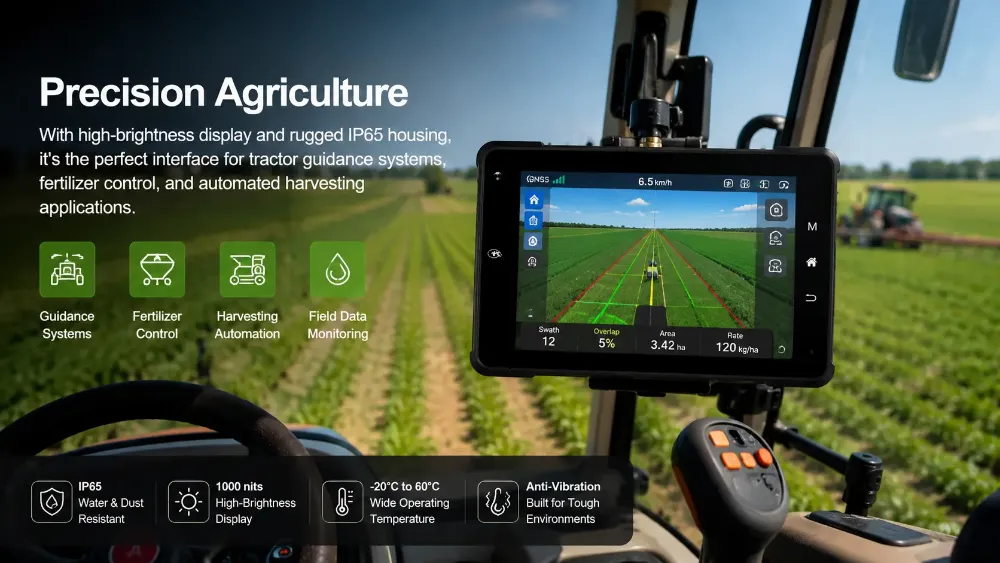

Precision Agriculture
With its high-brightness display and IP65 housing, it’s the perfect interface for tractor guidance systems, fertilizer control, and automated harvesting in dusty outdoor fields.
Heavy-Duty Mining
Designed for extreme durability, the Q777 monitors engine telemetry and operator safety in mining operations, surviving 24/7 exposure to dust and high-impact shocks.

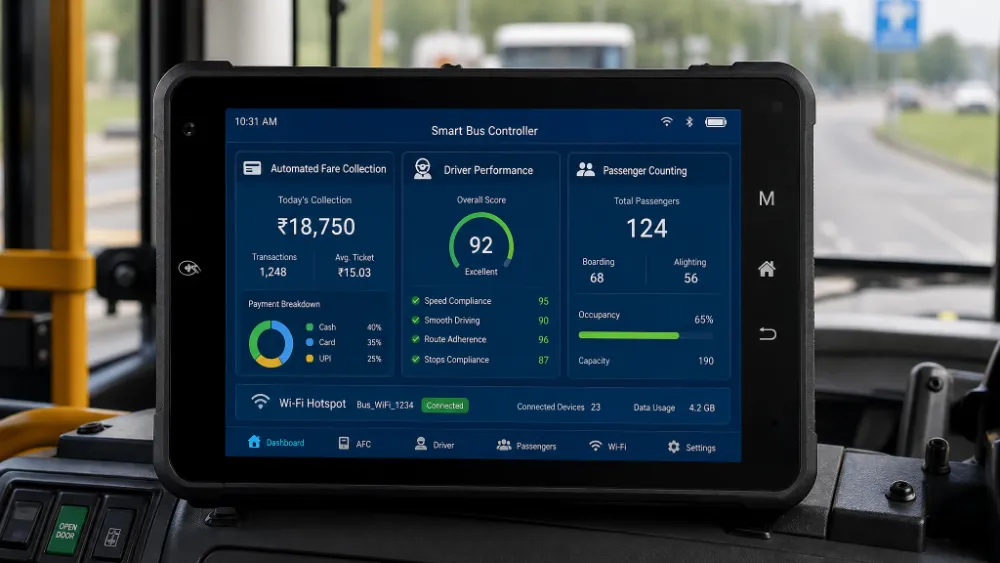

Public Transportation & Smart Bus
The central controller for smart buses, handling automated fare collection (AFC), passenger counting, and driver performance monitoring while providing in-vehicle Wi-Fi.
Product Overview Video
See the Q777’s rugged design and vehicle integration in action.
Essential Accessories
Professional mounting and connectivity solutions for your vehicle fleet.
Docking Station
Easy for driver’s in and out-of-cab usage
Pigtail Cable
Various interfaces available for external equipment
Mount Kit
Universal mounting
AHD Camera
720/1080P high definition
Customer Success
Logistics Fleet in USA
Implemented Q777 for 500+ trucks to achieve 100% ELD compliance and real-time fuel monitoring.

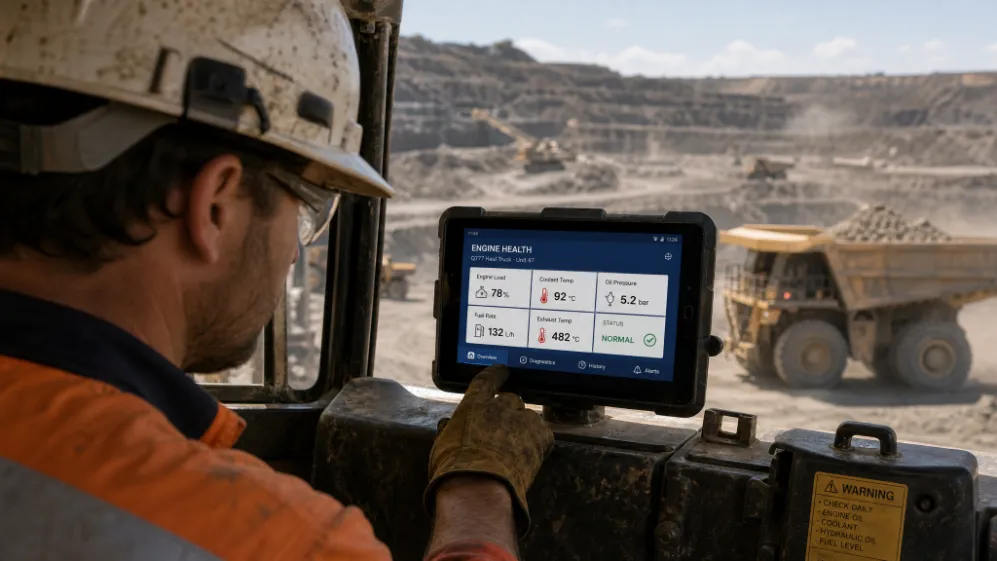

Mining Operator in Australia
Utilized the Q777’s IP65 rating to monitor engine health in high-dust open-pit environments.
Frequently Asked Questions
What applications is the Q777 designed for?
The Q777 is a compact 7-inch rugged Android vehicle tablet designed for Fleet Management, Logistics & Transportation, Forklift Operations, Public Transportation, Agricultural Vehicles, and Construction Equipment.
What Android version does the Q777 support?
The Q777 supports Android 14.
Does the Q777 support CAN Bus?
Yes. The Q777 supports CAN Bus communication through its built-in CAN interface for vehicle data collection, fleet monitoring, diagnostics, and industrial control applications.
Does the Q777 support SAE J1939?
The Q777 supports CAN-based applications and can be integrated with SAE J1939-based solutions according to project requirements.
Does the Q777 support AHD cameras?
Yes. The Q777 supports AHD camera input for rear-view camera, forklift safety camera, and vehicle monitoring applications.
Does the Q777 support docking installation?
Yes. The Q777 features a docking design for secure vehicle installation and stable power connection.
What communication options are available?
The Q777 supports 4G LTE, Wi-Fi, Bluetooth, and GNSS.
Can WAYSION customize the Q777?
Yes. WAYSION provides firmware customization, logo customization, pre-installed applications, accessories, and OEM/ODM solutions.
