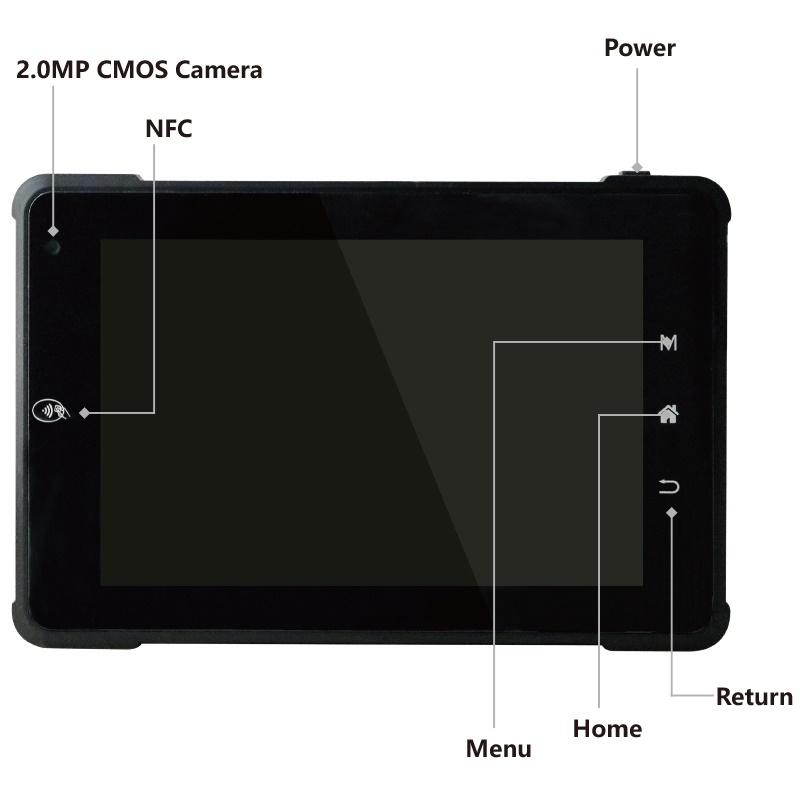

  • q7s-1

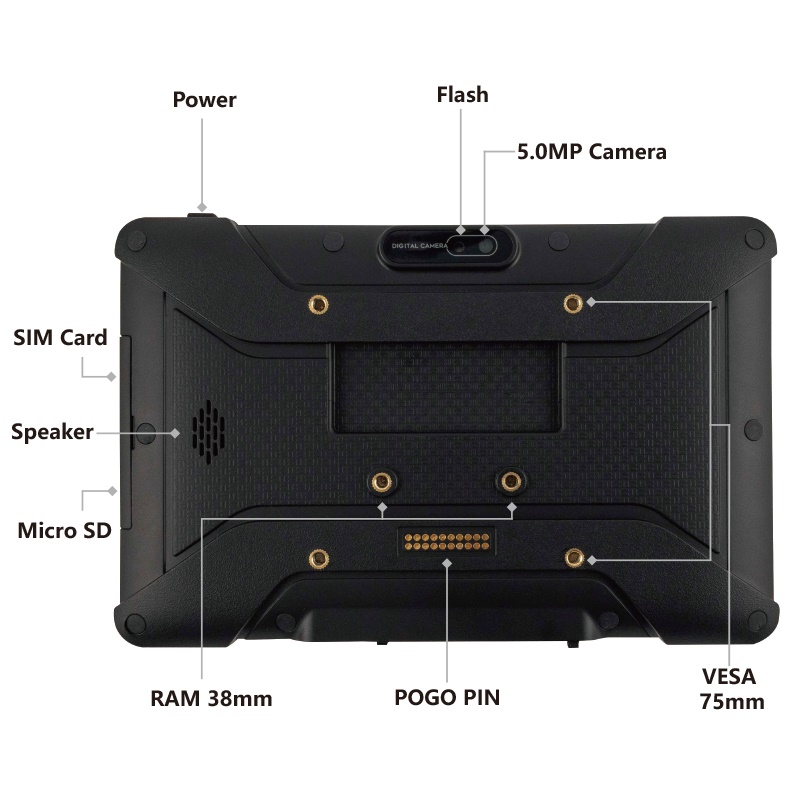

  • q7s-2
  • q7s-3
  • q7s-4

Q7S

●Rugged enclosure design with IP65 rating
●Qualcomm quad-core 4*ARM Cortex-A7 processor,1.1 GHz
●Android 7.1.2 operating system
●Integrated Adreno 304 GPU, up to 400 MHz
●Built-in 3.7V 5000 mAH Poly-lion battery
●Built-in 2.0MP CMOS front camera, 5.0MP CMOS backcamera
●Built-in 4G/3G cellular, GPS+GLONASS+BEIDOU,NFC etc
●Built-in and Extended I/O interfaces USB-Type C, TF(up to 128 GB), POGO PIN, 4XGPIO,OBDI,RS232, RS422.RS485.SAE-J1939

Category: Tags: , ,


Download

Q7S is the latest Waysion’s offering which is specially designed by keeping in view the latest market trends. It is an all-in-one rugged detachable, portable, and high-performance vehicle-mounted Mobile Data Terminal that provides an outstanding user experience. Q7S is the 7-inch special, smart and intelligent mobile data terminal with a bright and daylight viewable TFT-LCD, LED backlight. Moreover, it is equipped with Android 7.1.2 OS, Poly-Iion based high-capacity battery and Qualcomm Quad-core processor which results in high-performance prolonged battery backup and low power consumption. In addition to this, various features such as different wireless communication modules, make it as the best choice. Taking all these factors into consideration, it can be a perfect companion for a mobile workforce in transportation and logistics.

Q77

Compact Design, Easy for Portable Use

The compact design of Q7S makes it aesthetically attractive and easy for portable use. The portability of a device will help your workers to work smarter. 2GB LPDDR3 RAM (1GB optional), 16GB eMMC ROM (8GB optional), Quad-core ARM Cortex-A7 processor, Integrated Adreno Graphic Card, Extendable Storage,Docking Station, USB, RS232, RS422. These are the front-end specifications that make Q7S the best MDT choice.

Rugged, Resistance and Capabilities

The Major problem with most of the mobile data terminals throughout the world is that, these devices are not capable of passing ruggedness and resisting against the harsh environments. Q7S is an IP65 grade Android-based MDT that is specially designed with the capabilities to tolerate harsh scenarios such as subzero-temperature, snow, dust, passing ruggedness and other rough situations. Q7S has already proved itself for many companies as the most efficient, rugged and best in-vehicle portable choice!

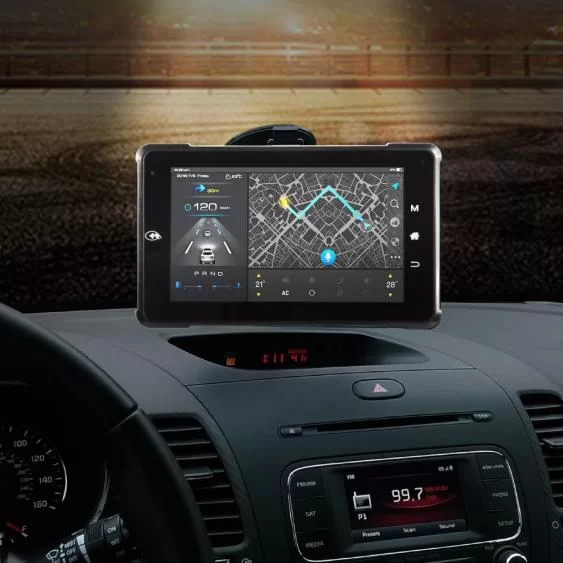

Q7S-Rugged-Tablet-2

Built for all-day every-day business High Capacity Battery and Low Power Consumption

Q7S is equipped with a high capacity (3.7V 5000mAh) battery based on Poly-Iion which can provide up to 6 hours long battery backup. Moreover, the fast ultra-low-power processor combines with plenty of memory, allowing workers to run multiple apps simultaneously. And the processor minimizes power consumption, extending useful battery life.

All-In-One Approach Makes Q7S a Perfect Choice

Q7S comprehensively covers all the modern features in one device. It is equipped with the latest Android 7.1.2 operating system, a highly optimized Qualcomm Quad-core processor and an advanced touch screen technology that gives an outstanding user experience to the end-user. With its highly responsive touch input capabilities, this powerful rugged tablet gives all of your workers the flexibility to quickly and comfortably complete any task at their hands. Thus, it makes the perfect companion for your logistics mobile workforce.

rugged-tablet-mobile-device-q7s

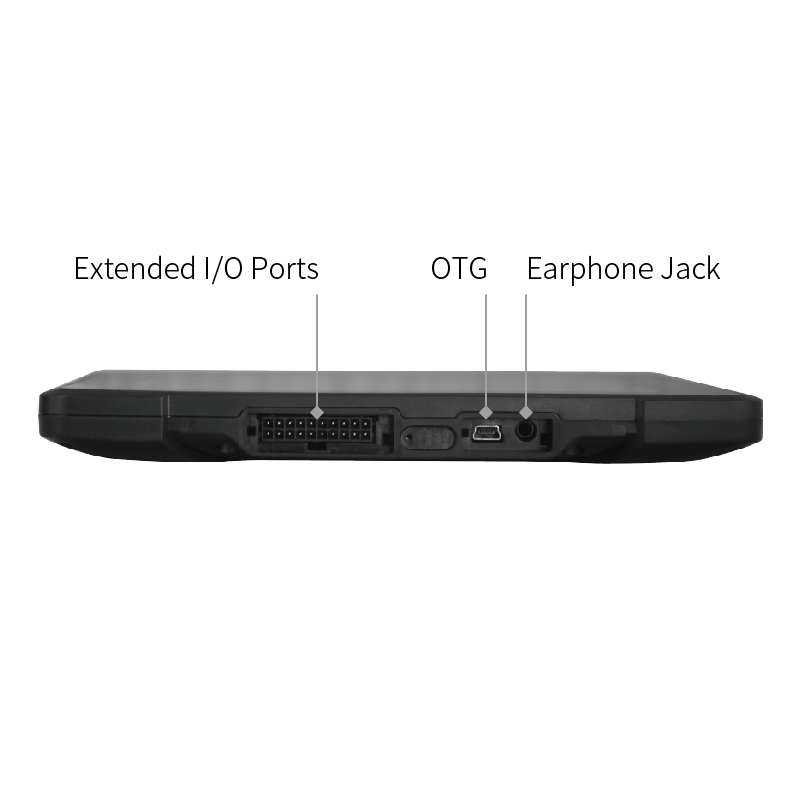

rugged-tablet-mobile-device-Q7S-5

Reliable Network Module for Many Industrial Applications

Cellular signaling schemes and digital data transmission modules are very important for the portable devices. Different industrial applications under different conditions like an indoor, desert , cave and much more, need a reliable network module to keep the device connected with and let you make full use of MDT. After a long research and technical assessments by our highly professional tech experts, we have chosen Quectel 4G (LTE, UMTS,CDMA2000, TD-SCDMA, and GSM) network module for our Q7S.

Specifications

Model Q7S
Core Processor Qualcomm Quad core ARM Cortex-A7, 1.1GHz
Graphic Integrated Adreno 304 GPU, up to 400MHz
RAM 2GB LPDDR3(1GB optional)
ROM 16GB eMMC(8GB optional)
OS Android 7.1.2
Display LCD panel 7-inch IPS TFT-LCD, LED backlight
Resolutions 1280 × 800
Brightness 350 cd/m2 (typical)
Contrast Ratio 800:1
View Angle (°) 89/89(L/R), 89/89(U/D)
Touch panel G+G multi-touch capacitive touch panel
wireless WiFi IEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz
Bluetooth Ver 4.2
Cellular 4G (LTE, UMTS, CDMA2000,TD-SCDMA, GSM)
Positioning Integrated GPS+GLONASS+BEIDOU
Optional Function Camera 2.0MP CMOS (front)
5.0MP CMOS (back)
NFC Read/Write Mode: ISO/IEC 14443 A&B up to 848kbit/s, FeliCa at 212 & 424 kbit/s,
MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s, NFC Forum T3T (FeliCa, PN7150 only)
G-sensor Built in
Light sensor Built in
Compass Built in
Gyroscope Built in
Speaker Built-in stereo speaker(2W, 4Ω)
Multimedia Video Encode:30fps 720p(H.264)30fps.WVGA(mp4/VP8)
Decode:30fps 1080p(H.264/mPEG-4/VP8/H2.65
DIVX4/5/6)30fps WVGA(H.263)
Audio MP3, WMA, OGG, APE, FLAC, AAC etc.
User Interface Onboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x OTG (USB Mini AB type)
1 x Combo Audio Jack (audio+mic)
1 x POGO PIN (20 PIN)

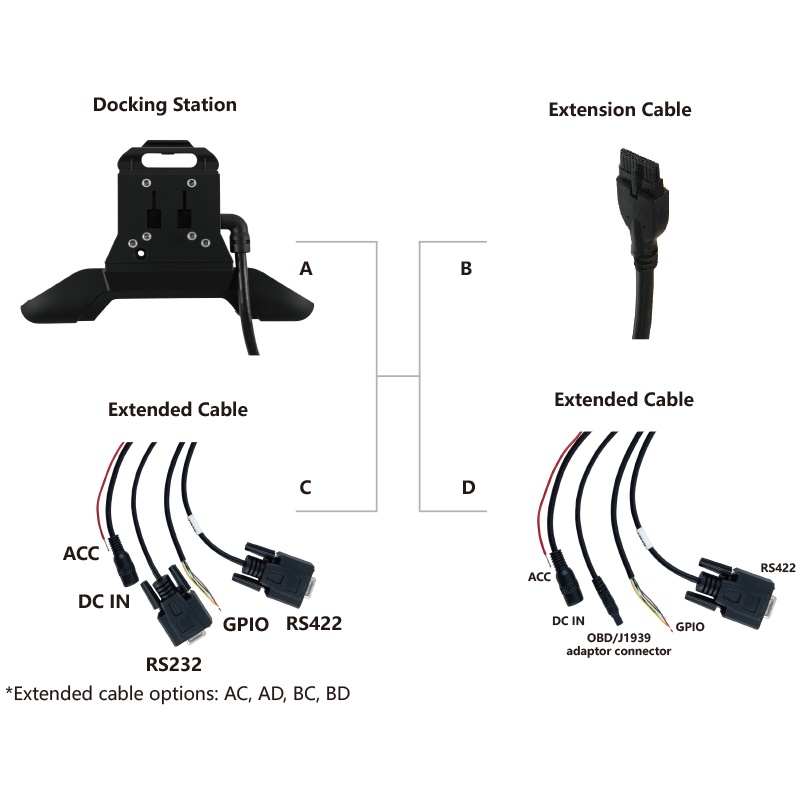

Extended
I/O ports
(on pigtail cable)
1 x RS422 (RS485 optional)
1 x RS232 (OBD-Il optional)
Support OBD-II & SAE-J1939 (Share the same interface with RS232, OBD-II serial port will be occupied) via external analytical box
4 x GPIO (input*2, output*2)
1 x DC in (9~36V)
1 x ACC Input
Function Key Power, Menu, Home, Return
Power Indicator Red(charging), Green(full)
Power Supply DC In 12V DC (9~36V)
Battery 3.7V 5000mAh, Lithium-Polymer battery pack (run-time up to 6 hours)
Power Consumption Normal mode ≤6W
Charging mode ≤10W
Environment Operating Temp -20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp -20°C~80°C
IP Rating IP65
Mechanical Dimensions 200(W)x130(H)x20(D) mm
Weight 0.47kg (tablet only)
Mount VESA, RAM, Double-T compliant
Accessories Standard AC/DC adaptor or car power adaptor(optional)
Optional Docking, extended cable, J1939 cable, OBD-II cable
