X7R

●Rugged enclosure design with IP54 rating
●Rockchip RK3368 ARM Cortex-A53 Octa-core processor,1.5GHz
●Android 6.0 Marshmallow operating system.
●Integrated PowerVR G6110 GPU, Support OpenGL ES 1.1/2.0/3/1
●7-inch 1024×600 LCD with multi-touch capacitive touchscreen.
●Built-in 4G/3G cellular, RJ45 Ethernet LAN(Gigabits optional), NFC
●Extended Cable I/O RS422(RS485 optional), RS232,USB( 3 X RS232optional),CAN Bus

Category: Tags: , , ,


Download

X7R is a rugged IP54 grade mobile data terminal specifically designed for intelligent transportation like Fleet Management System. Based on Rockchip RK3368 ARM Cortex- A9 octa-core processor, our X7R has a higher and more reliable performance in-vehicle applications. This device integrates a variety of wireless communication modules such as Wi-Fi, Bluetooth, 4G cellular and GPS. The rugged enclosure provides more capabilities not only in a wide range of temperatures but also in harsh environments subject to shock and vibration. Its design also allows it to own a good ingress protection rating of IP54. The pigtail cable is designed for more extension data communications, such as RS232, RS422, RJ45, USB, CAN Bus, GPIOs, etc. The X7R works with the Android 6.0 Marshmallow operating system and we provide BSP support for it.

x7r-4

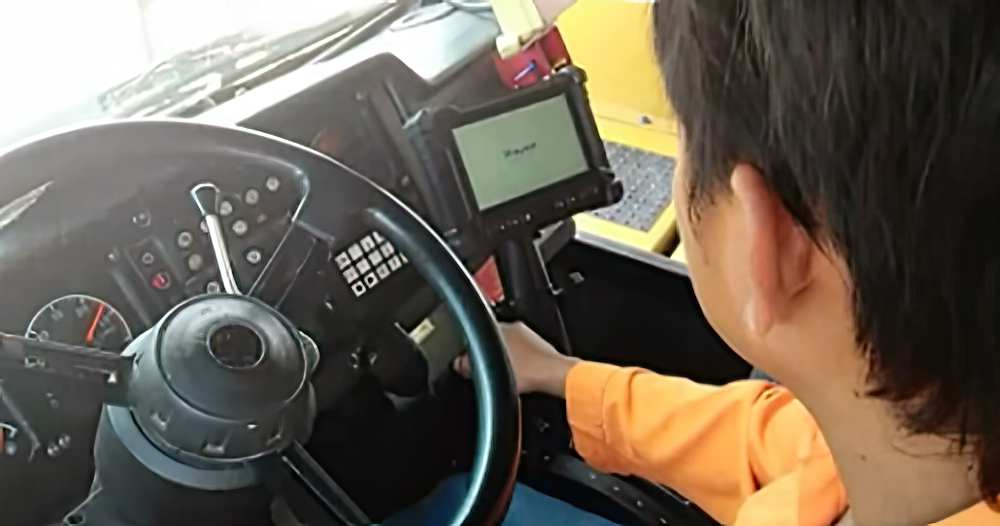

lmprove Fleet Safety

While drivers get a full map all the way around and benefit from smartnavigation, fleet safety can be also highly improved with driver monitoringand two-way communication provided with smart fleet and asset trackingsystems.

Extend Device Capabilities

High-performance processors and multiple interfaces and modules extenddevice capabilities.Customers’ software compatible, extendedhardware(cameras, sensors, headphones, taxi meters, etc.) supportedand easy mounting ensured.

X7R-2
x7r-3

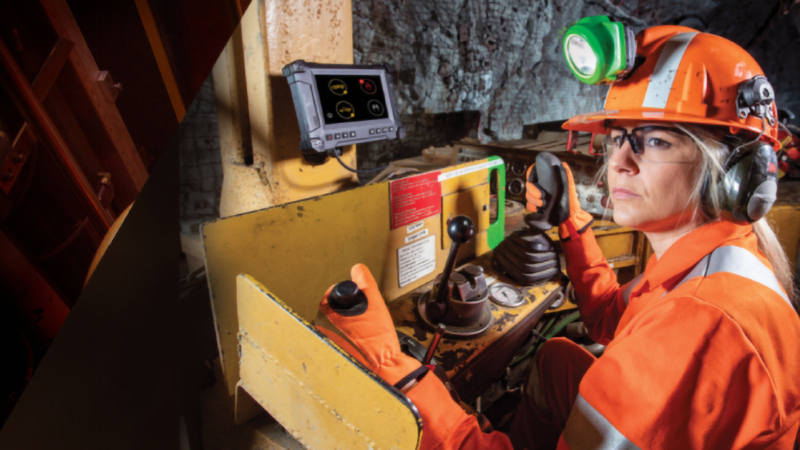

Rugged Design

Water & dustproof design can meet the in-cab harshest environment. Nomatter whether in the hottest Middle East, or the coldest North Europe.X7R can still work smoothly to help drivers.

Diversified Extendibility

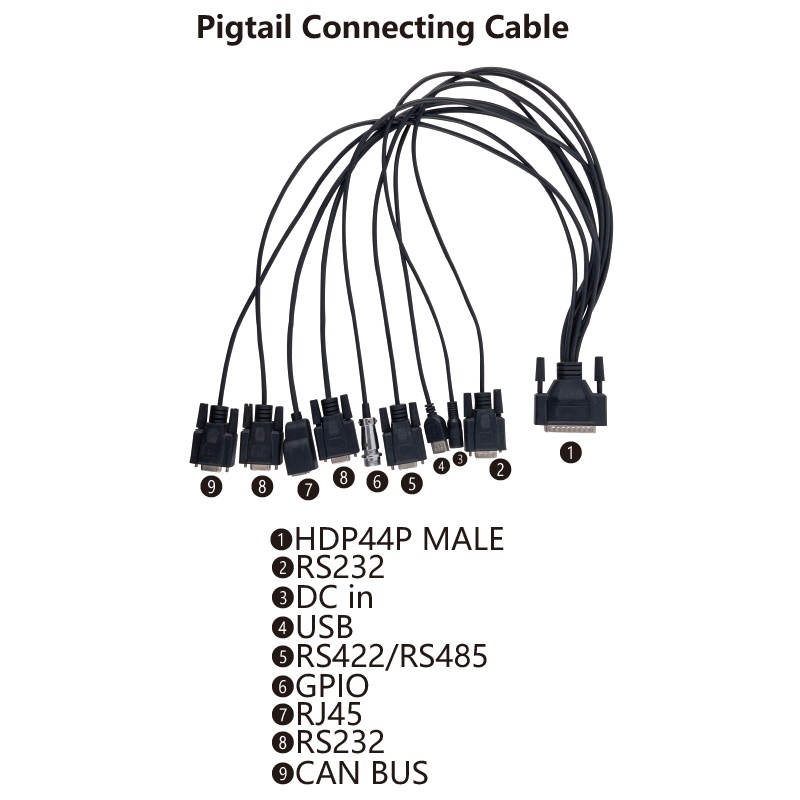

X7R can be extended via I/O ports such as RS232, RS422, RJ45, USB, CAN Bus, GPIOs, etc. With the extension of these data communications, this device supports high compatibility.

x7r-4

Specifications

Model X7R
Core Processor Rockchip RK3368 Octa-core A53, 1.5GHz
Graphic Integrated PowerVR G6110 GPU, support OpenGL ES 1.1/2.0/3.1, OpenCL, DirectX9.3
RAM 2GB DDR3
ROM 8GB eMMC(16GB)
OS Android 6.0
Display LCD panel 7-inch LCD
Resolutions 1024 × 600
Brightness 500 cd/m2 (typical)
Contrast Ratio 800:1
View Angle (°) 75/75(L/R), 70/75(U/D)
Touch panel G+G multi-touch capacitive touch panel
wireless WiFi IEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz
Bluetooth Ver 4.0
Cellular 4G optional (LTE, UMTS, GSM)
NFC Support for:
– ISO/IEC 18092
– ISO/IEC 21481
– ISO/IEC 14443 Type A, Type B, and Generic
B Prime cards (CE mode only for B Prime cards)
– Japanese Industrial Standard (JIS) (X) 6319-4
– ISO/IEC 15693 standards.
– Extended data rates up to 848 kbps for all
Positioning Integrated GPS+GLONASS+BEIDOU (GLONASS optional)
Multimedia Video Encode: 1080P video encoding for H.264 and VP8, MVC
Decode: 4K H.265/H.264 video decoder, 1080P multi video decode
Audio MP3, WMA, OGG, APE, FLAC, AAC etc.

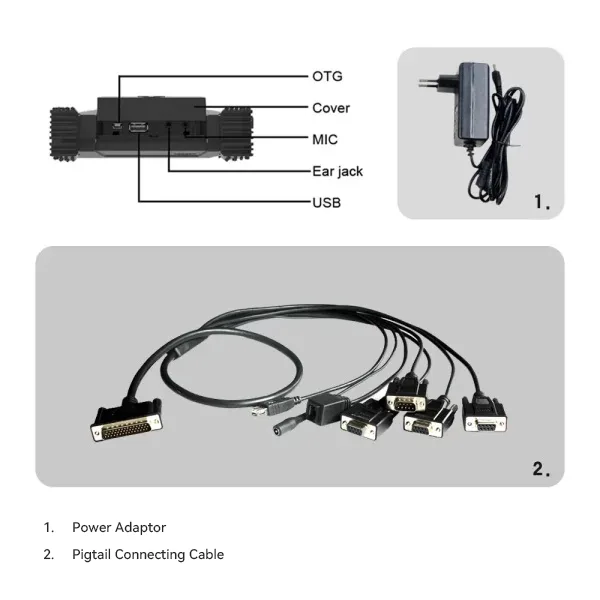

Accessories Standard AC/DC adaptor or car power adaptor(optional)
Extended cable
Optional Sunshade
User Interface Speaker Built-in speakers(1.5W, 4Ω) x 2

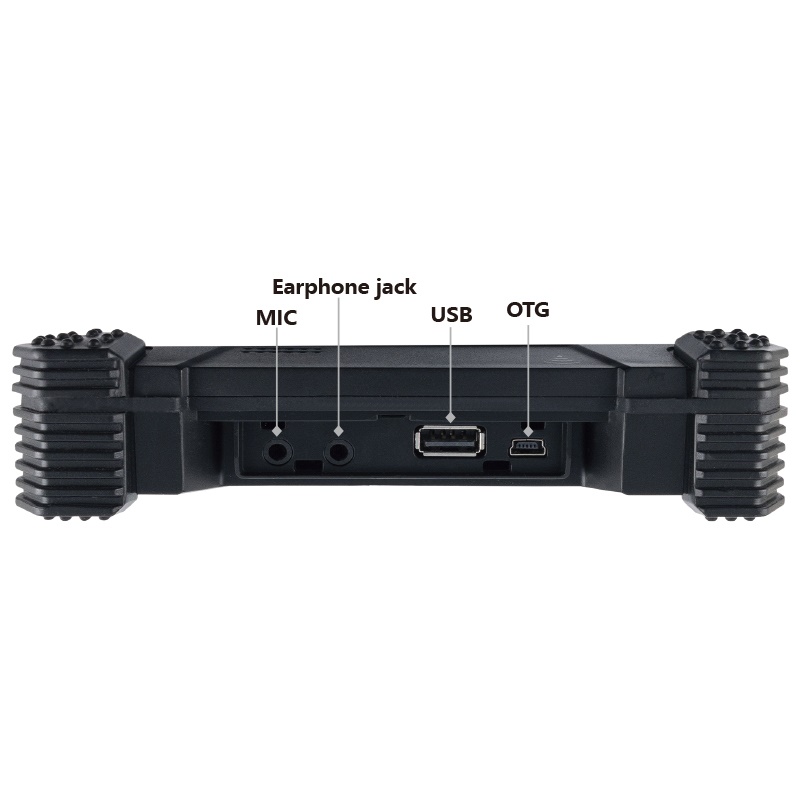

Onboard
I/O ports
1 x SD cardslot(up to 128GB)
1 x SIM cardslot
1 x USB Host (Type A)
1 x OTG(mini-B type)
1 x microphone jack
1 x earphone jack

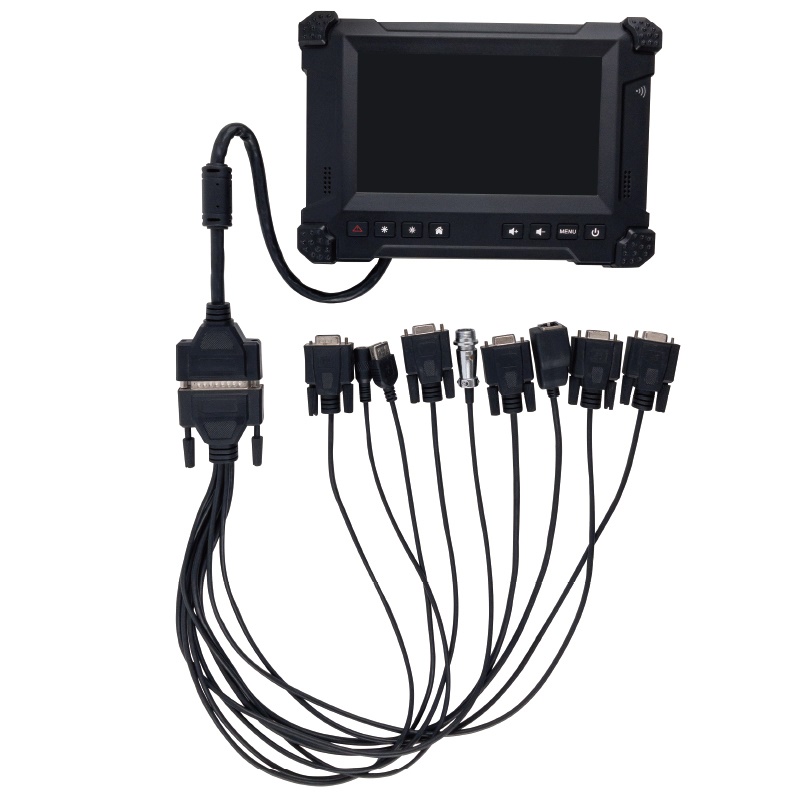

Extended
I/O ports
(on pigtail cable)
1 x RJ45
1 x CAN Bus 2.0B(optional)
1 x RS422(RS485 optional)
3 x RS232
4 x GPIO(3 x DI, 1 x DO)
1 x USB Host (Type A)
1 x DC in

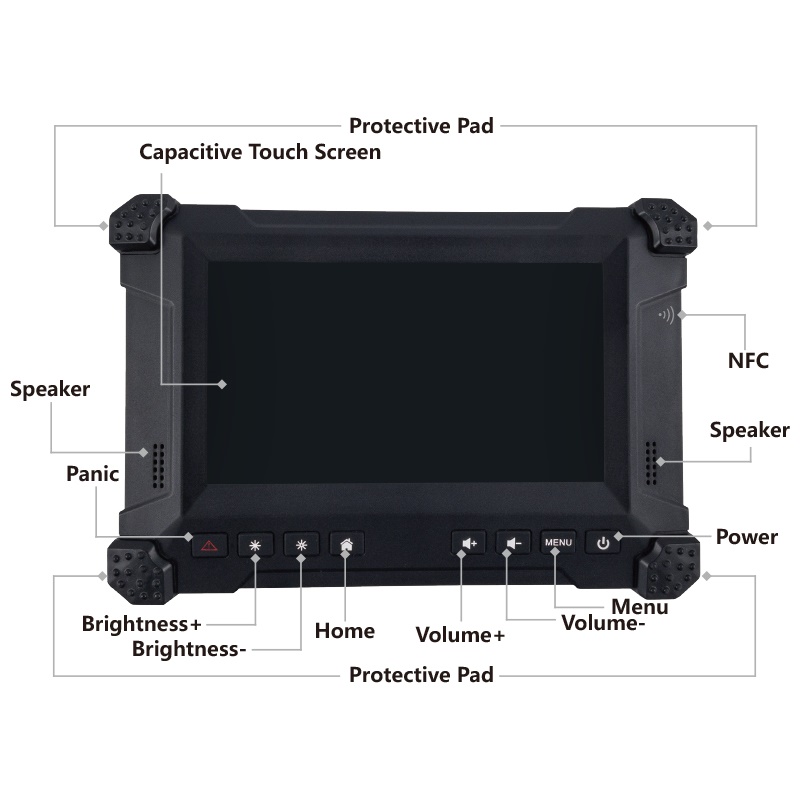

Function Key Panic, Brightness+, Brightness-, Home , Volume+, Volume-, Menu, Reset
Power Light LED light
Power Supply DC In 12V DC (9~36V)
Power Consumption Normal mode ≤6W
Charging mode ≤10W
Environment Operating Temp -20°C~70°C (w/o battery)
Storage Temp -20°C~80°C
IP Rating IP54
Mechanical Dimensions 231(W)x159(H)x43(D) mm
Weight 1.13kg

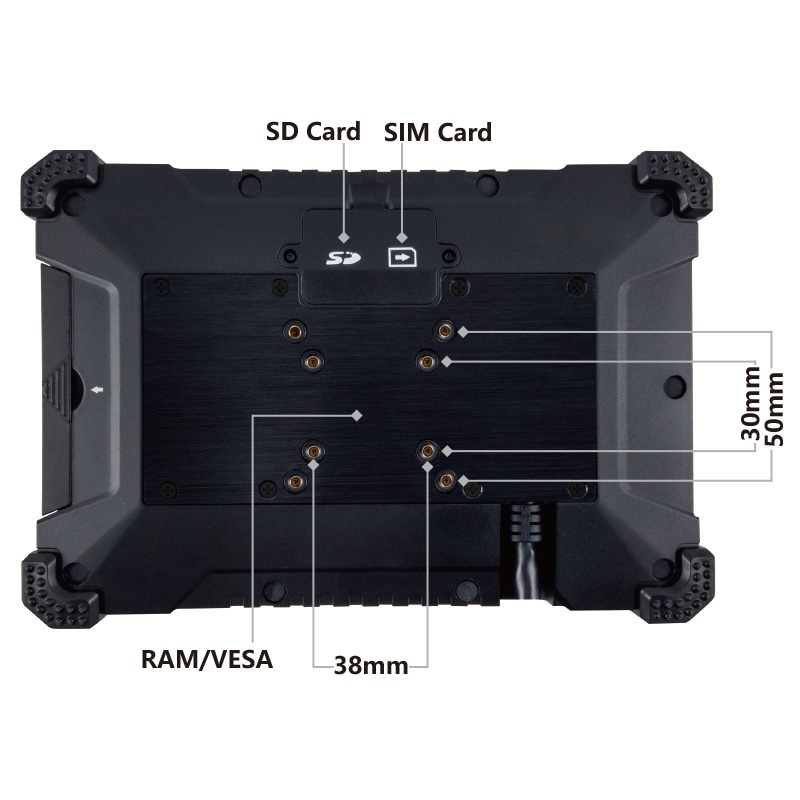

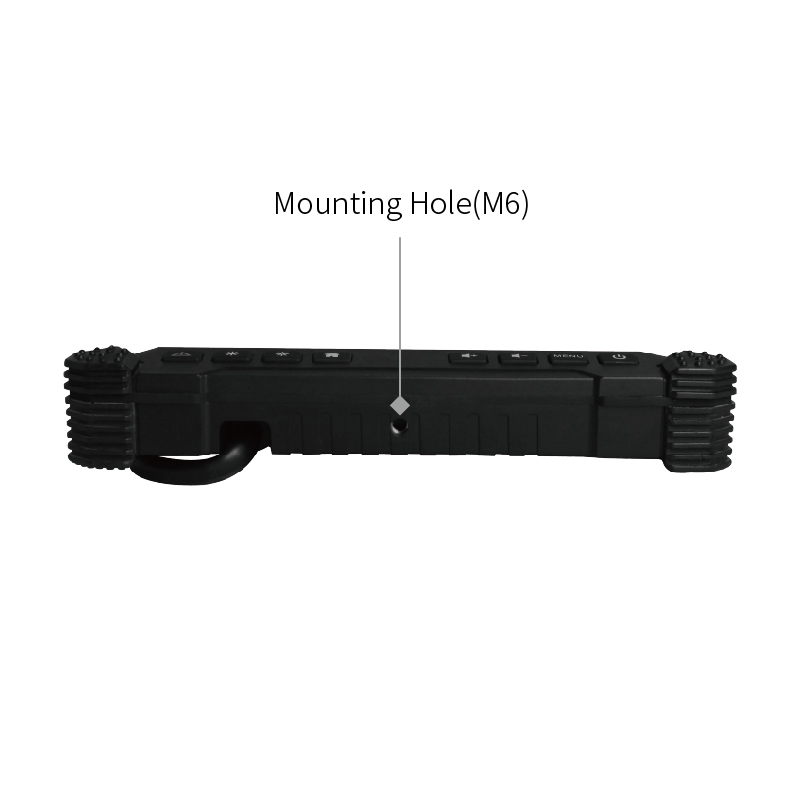

Mount 50x50mm VESA or 38x30mm RAM or M6 mounting
