Q77

●Rugged enclosure design with IP65 rating
●Qualcomm Octa-core ARM Cortex-A53 processor 1.8GHz
●Android 9.0 operating system
●Integrated Adreno 506 GPU, up to 600MHz
●Built-in 3.7V 5000 mAH Poly-lion battery
●Built-in 2.0MP CMOS front camera. 5.0MP CMOS back camera
●Built-in 4G/3G cellular, GPS+GLONASS+BEIDOU,NFC etc
●Built-in and Extended I/O interfaces USB-Type C, TF(up to 128 GB), POGO PIN4xGPIO,OBDILRS232, RS422,RS485.J1939

Category: Tags: , , , ,


Download

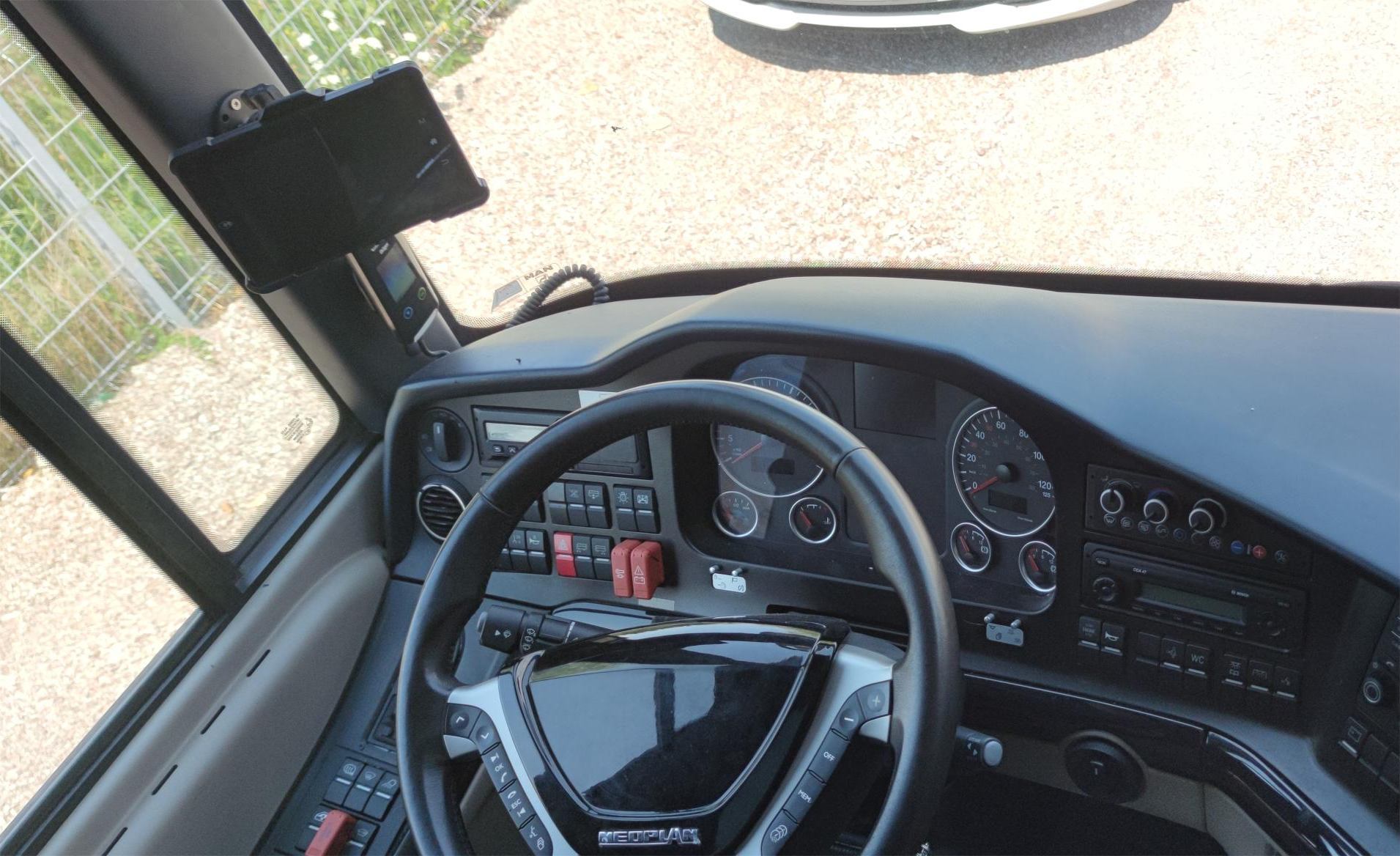

Q77 is the latest Waysion’s offering which is specially designed by keeping in view the latest market trends. It is an all-in-one rugged detachable,
portable, and high-performance vehicle-mounted Mobile Data Terminal that provides an outstanding user experience. Q77 is the 7-inch special,
smart and intelligent mobile data terminal with a bright and daylight viewable TFT-LCD, LED backlight. Moreover, it is equipped with Android 9 OS,
Lithium-polymer based high-capacity battery and Octa-core ARM processor which results in high-performance prolonged battery backup and low
power consumption. In addition to this, various features such as different wireless communication modules, make it as the best choice. Taking all
these factors into consideration, it can be a perfect companion for a mobile workforce in transportation and logistics.

Q77

Compact Design, Easy for Portable Use

The compact design of Q77 makes it aesthetically attractive and easy for portable use. The portability of a device will help your workers to work smarter. 3GB LPDDR3 RAM (2GB optional), 32GB eMMC ROM (16GB optional), Octa core ARM Cortex-A53 processor, Integrated Adreno Graphic Card, Extendable Storage, Docking Station, USB Type-C, RS232, RS422. These are the front-end specifications that make Q77 the best MDT choice.

Rugged, Resistance and Capabilities

The Major problem with most of the mobile data terminals throughout the world is that, these devices are not capable of passing ruggedness and resisting against the harsh environments. Q77 is an IP65 grade Android-based MDT that is specially designed with the capabilities to tolerate harsh scenarios such as subzero-temperature, snow, dust, passing ruggedness and other rough situations. Q77 has already proved itself for many companies as the most efficient, rugged and best in-vehicle portable choice!

Q77
rugged-tablet-mobile-device-q77

Built for all-day every-day business High Capacity Battery and Low Power Consumption

Q77 is equipped with a high capacity (3.7V 5000mAh) battery basedon Lithium-Polymer which can provide up to 6 hours long battery backup.
Moreover, the fast ultra-low-power processor combines with plenty of memory, allowing workers to run multiple apps simultaneously. And the processor minimizes power consumption, extending useful battery life.

All-In-One Approach Makes Q77 a Perfect Choice

Q77 comprehensively covers all the modern features in one device. It is equipped with the latest Android 9.0 operating system, a highly optimized
Qualcomm Octa-core processor and an advanced touch screen technology that gives an outstanding user experience to the end-user. With its highly
responsive touch input capabilities, this powerful rugged tablet gives all of your workers the flexibility to quickly and comfortably complete any task at their hands. Thus, it makes the perfect companion for your logistics mobile workforce.

rugged-tablet-mobile-device-q77
Q77

Reliable Network Module for Many Industrial Applications

Cellular signaling schemes and digital data transmission modules are very important for the portable devices. Different industrial applications
under different conditions like an indoor, desert , cave and much more, need a reliable network module to keep the device connected with and
let you make full use of MDT. After a long research and technical assessments by our highly professional tech experts, we have chosen Quectel
4G (LTE, UMTS, CDMA2000, TD-SCDMA, and GSM) network module for our Q77.

Specifications

Model Q77
Core Processor Qualcomm Octa-core ARM Cortex-A53 1.8GHz
Graphic Integrated Adreno 506 GPU, up to 600MHz
RAM 3GB LPDDR3 (2GB optional)
ROM 32GB eMMC (16GB optional)
OS Android 9.0
Display LCD panel 7-inch IPS TFT-LCD, LED backlight
Resolutions 1280 × 800
Brightness 350 cd/m2 (typical)
Contrast Ratio 800:1
View Angle (°) 89/89(L/R), 89/89(U/D)
Touch panel G+G multi-touch capacitive touch panel
wireless WiFi IEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz
Bluetooth Ver 4.2
Cellular 4G (LTE, UMTS, CDMA2000, TD-SCDMA, GSM)
Positioning Integrated GPS+GLONASS+BEIDOU
Optional Function Camera 2.0MP CMOS (front)
5.0MP CMOS (back)
NFC Read/Write Mode: ISO/IEC 14443 A&B up to 848kbit/s, FeliCa at 212 & 424 kbit/s, MIFARE 1K, 4K, NFC Forum type 1, 2, 3, 4, 5 tags, ISO/IEC 15693 Card Emulation Mode (from host): NFC Forum T4T (ISO/IEC 14443 A&B) at 106 kbit/s, NFC Forum T3T (FeliCa, PN7150 only)
G-sensor Built in
Light sensor Built in
Compass Built in
Gyroscope Built in
Speaker Built-in stereo speaker(2W, 4Ω)
Multimedia Video Encode: 1080p @60fps.(HEVC/H.264)
1080p @30fps.(mpEG-4/VP8)
Decode: 1080p @30fps.(DIVX4/5/6.mpEG-2)
Audio MP3, WMA, OGG, APE, FLAC, AAC etc.
User Interface Onboard

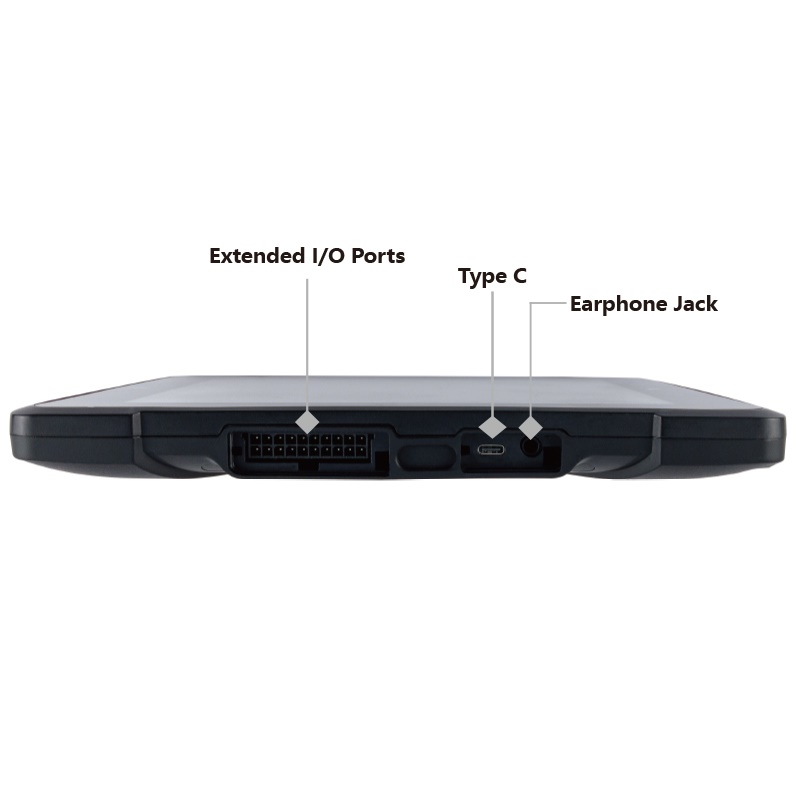

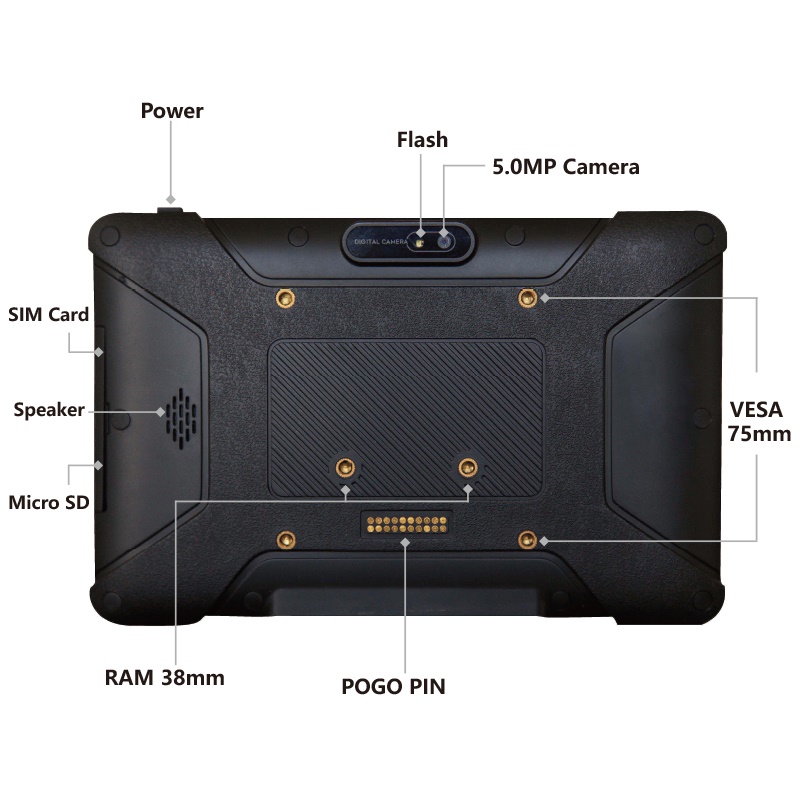

I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x USB Type-C
1 x Combo Audio Jack (audio+mic)
1 x POGO PIN (20 PIN)

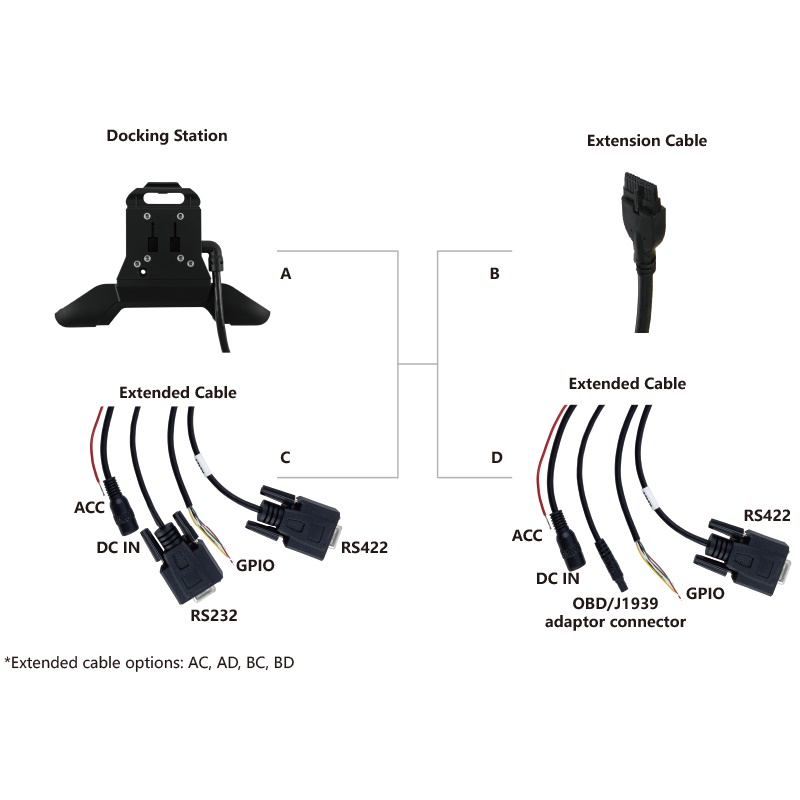

Extended
I/O ports
(on pigtail cable)
1 x RS422 (RS485 optional)
1 x RS232 (OBD-Il optional)
Support OBD-II & SAE-J1939 (Share the same interface with RS232, OBD-II serial port will be occupied) via external analytical box
4 x GPIO (input*2, output*2)
1 x DC in (9~36V)
1 x ACC Input

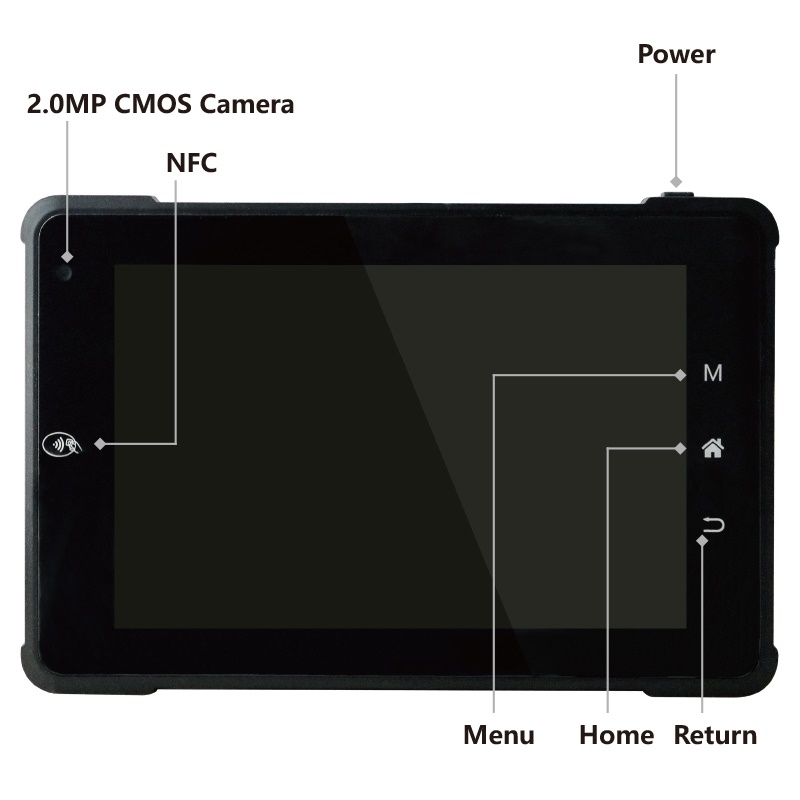

Function Key Power, Menu, Home, Return
Power Indicator Red(charging), Green(full)
Power Supply DC In 12V DC (9~36V)
Battery 3.7V 5000mAh, Lithium-Polymer battery pack (run-time up to 6 hours)
Power Consumption Normal mode ≤6W
Charging mode ≤10W
Environment Operating Temp -20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp -20°C~80°C
IP Rating IP65
Mechanical Dimensions 200(W)x130(H)x20(D) mm
Weight 0.47kg (tablet only)

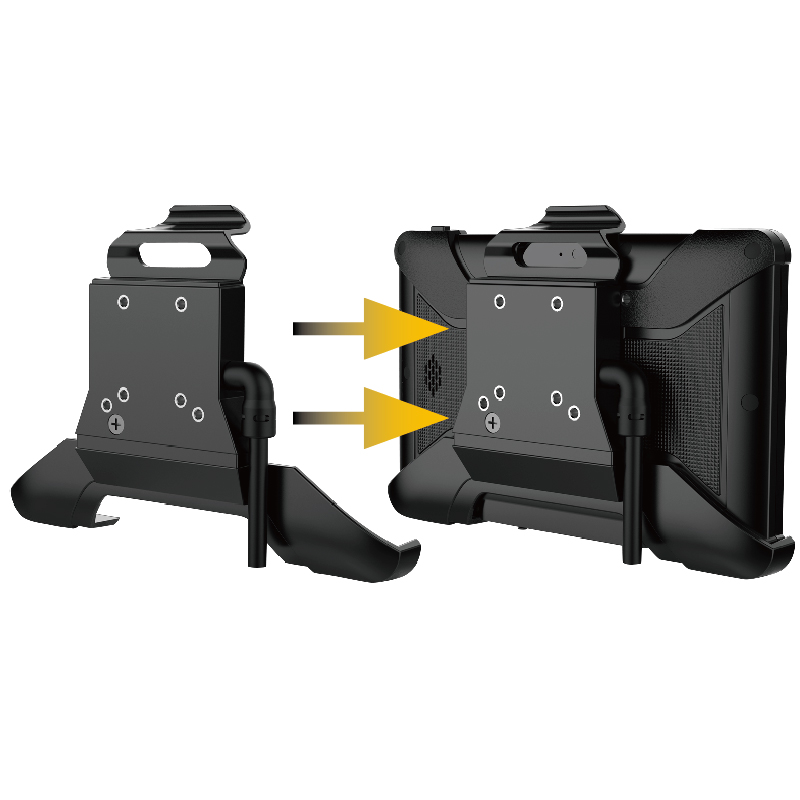

Mount VESA, RAM, Double-T compliant
Certification CE/E-mark
Accessories Standard AC/DC adaptor or car power adaptor(optional)
Optional Docking, extended cable, J1939 cable, OBD-II cable
