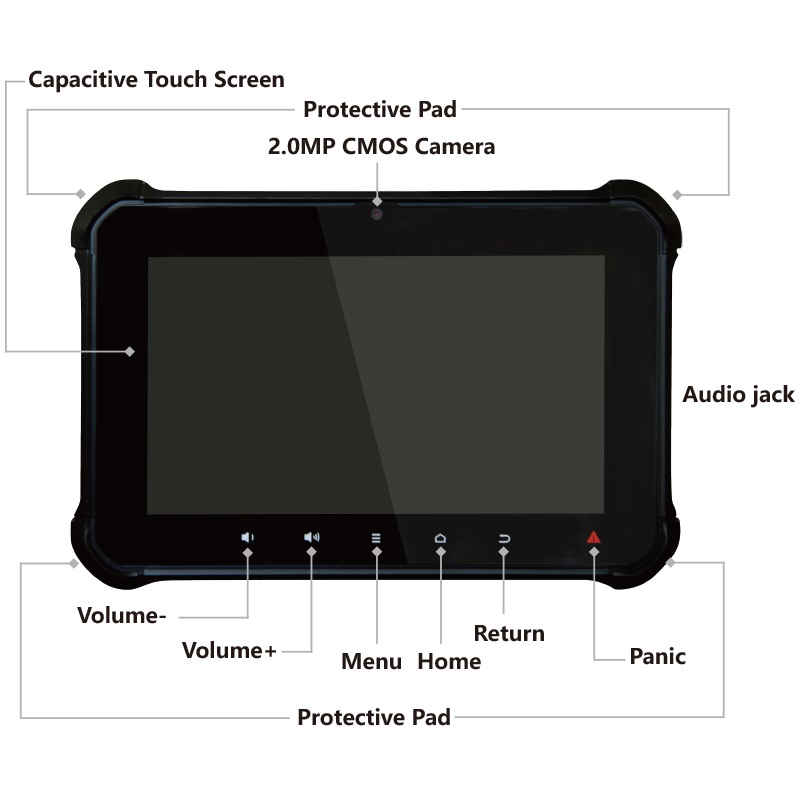

  • s8-1
  • s8-2
  • s8-6
  • s8-4

S8

●Rugged enclosure design with IP65 rating.
●Rockchip RK3288 Quad-core ARM cortex-A17 processor, 1.8GHz
●Android 7.1 Nougat operating system.
●Integrated 2D/3D Mali-T764 GPU, up to 600MHz.
●8-inch 1024×600 LCD with multi-touch capacitive touchscreen.
●Built-in 3.7V 3600mAH Poly-lion battery.
●Built-in 4G cellular, RJ45 Ethernet LAN (Gigabits optional), NFC
●Extended Cable I/0 RS422(RS485 optional), RS232, USB (2 X RS232 optional)

Category: Tags: , , , ,


Download

S8 is an IP65 grade 8-inch rugged Android tablet that is designed to withstand rough handling, like outdoor or in-vehicle harshest environment use. As for its CPU and OS, S8 is powered by Rockchip RK3288W ARM Cortex- A17 quad-core with Android 7.1 Nougat system or Linux (Ubuntu18.04). It also integrates optional modules like Gigabit Ethernet for data transmission and NFC for identification. Meanwhile, for in-vehicle use, it has functional interfaces such as RS232, RS422, USB host, etc. which are suitable for many applications such as fleet management, public transit, intelligent mining, precision farming, logistics and industrial control, etc.

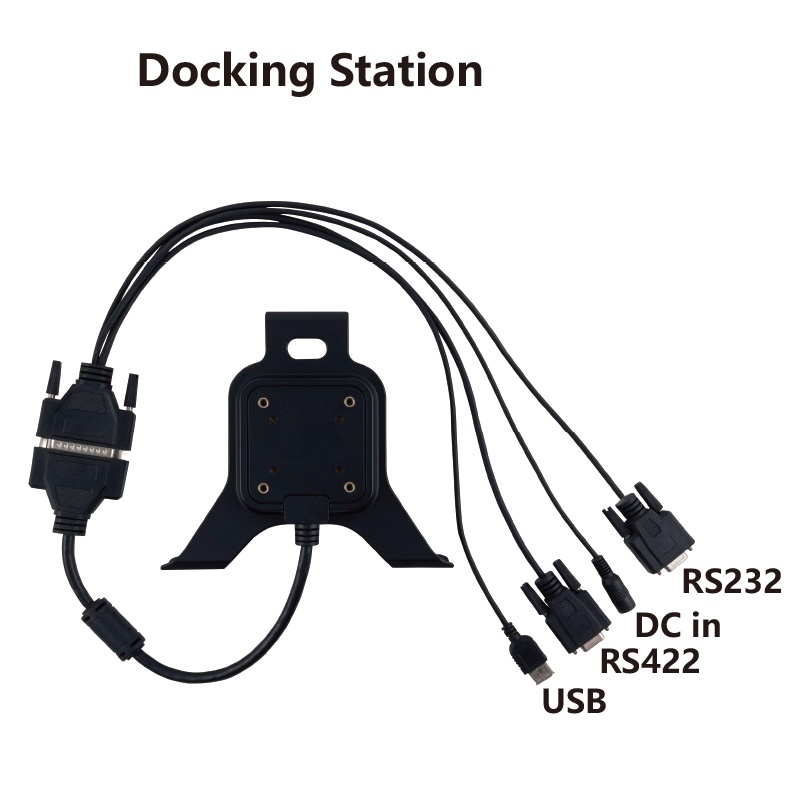

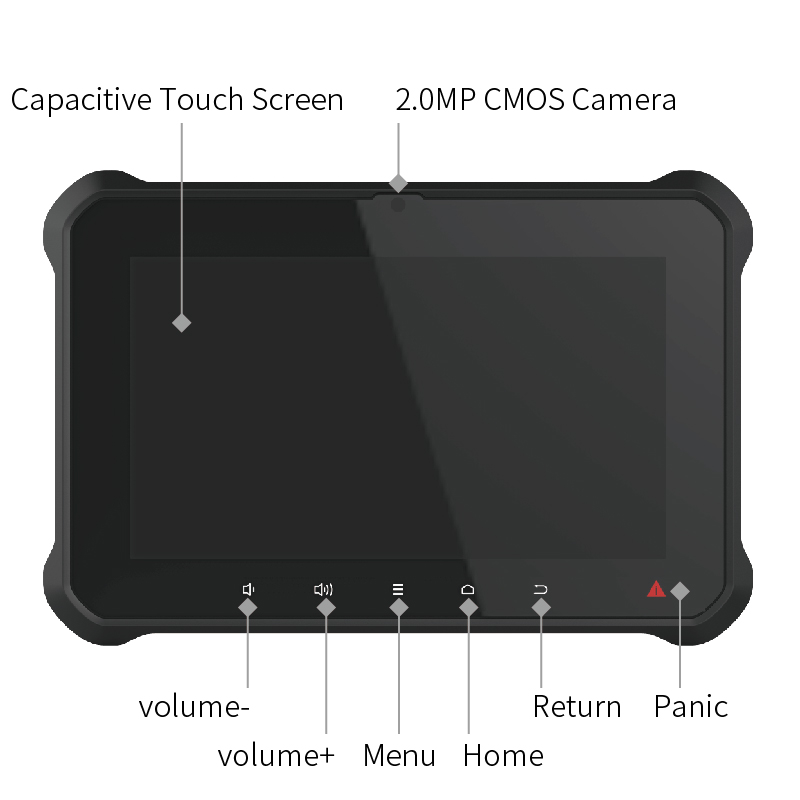

rugged-tablet-mobile-device-s8-4

Cutting-Edge Connectivity

S8 offers cutting-edge connectivity. It is integrated with all the essential networking modules: 4G LTE/ 3G Cellular, Wi-Fi/Bluetooth and Gigabit Ethernet for data communication and NFC for identification. The Wi-Fi module supports the latest Wi-Fi standards – 802.11a/b/g/n/ac. Similarly, Bluetooth enables the device to be paired with another so as to make a secured Personal Area Network. The device can be extended with a wireless keyboard, mouse, hand-free, etc. Through Bluetooth, It can effectively connect up to the range of 32 feet. As far as the cellular module is concerned, it is equipped with 4G LTE/3G technology. Moreover, it offers radio navigation systems: GPS, BEIDOU and GLOSNASS through which a user can navigate across the globe.

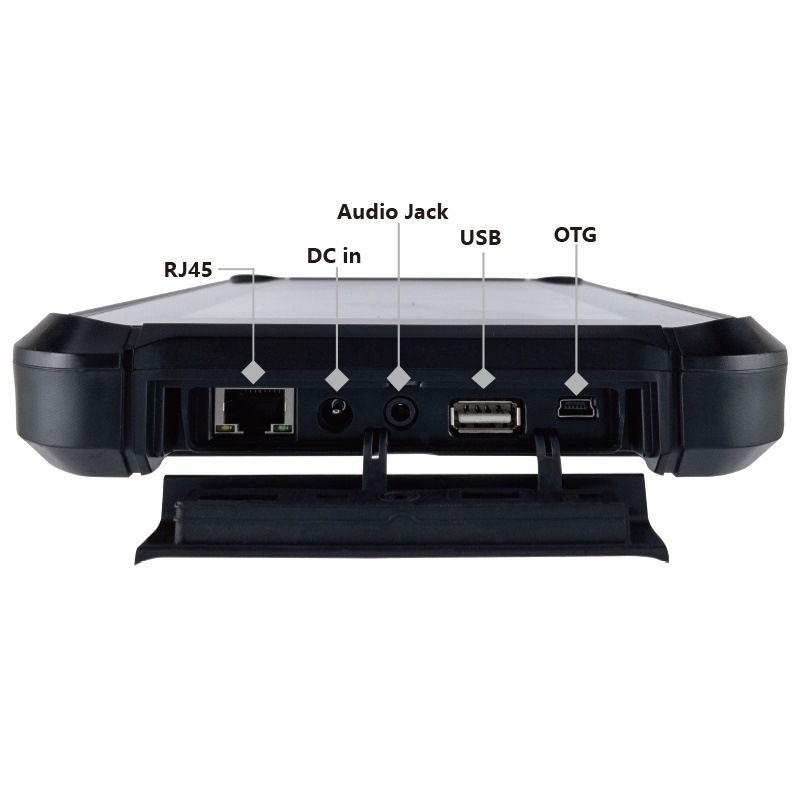

Onboard I/O Support with Docking

S8 also provides multiple connections for external equipment. It can be extended with USB, OTG, RS232, RS422 (RS485 optional) and Docking extension (optional). Through the extension of MDT with other peripherals, more industrial applications scenarios can be covered. S8 supports TF card (up to 128GB), having Combo Audio Jack and also POGO PIN.

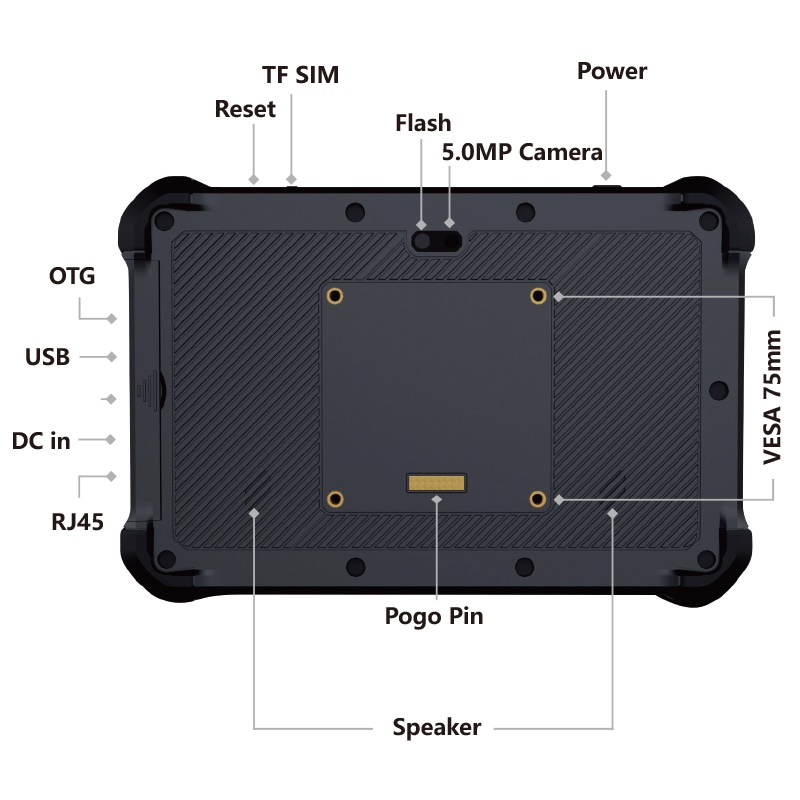

rugged-tablet-mobile-device-s8-6

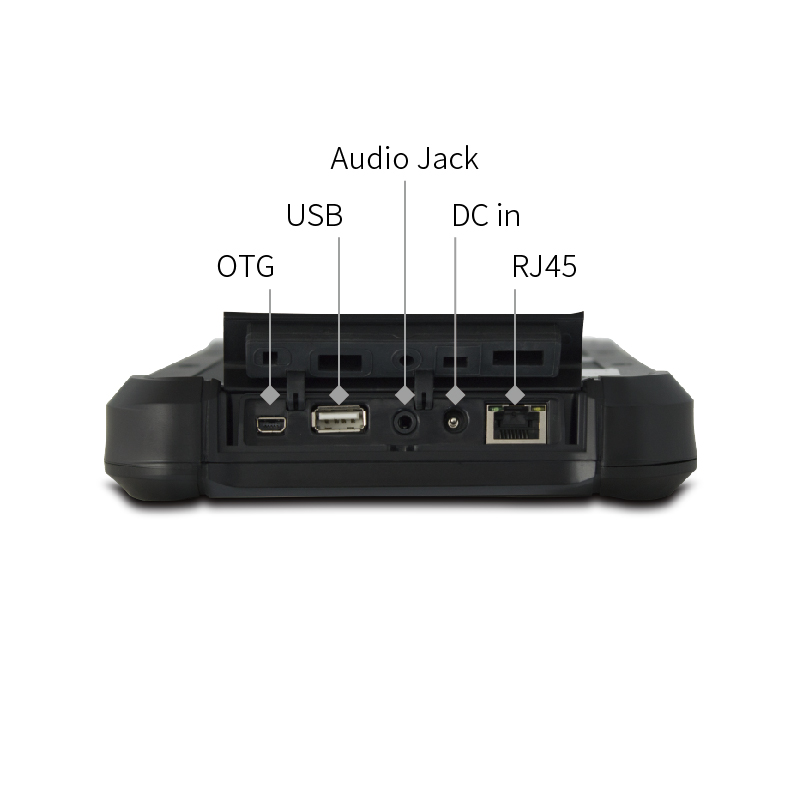

rugged-tablet-mobile-device-s8-3

Support Multi-Functional Modules Customization

High-performance processors and multiple interfaces and modules extenddevice capabilities. Customers’software compatible, extendedhardware(cameras, sensors, headphones, taxi meters, etc.) supportedand easy mounting ensured.

ELD Made Easy

With SAE J1939/OBD-Il interfaces(optional), recording data isautomatically compliant with multiple HOS rules (FMCSA) including Property/Passenger 60-hour/7 days & 70-hour/8-day.

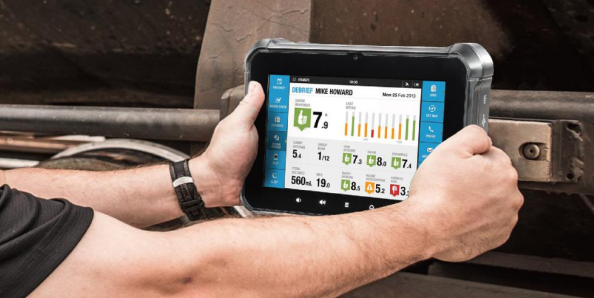

s8-5

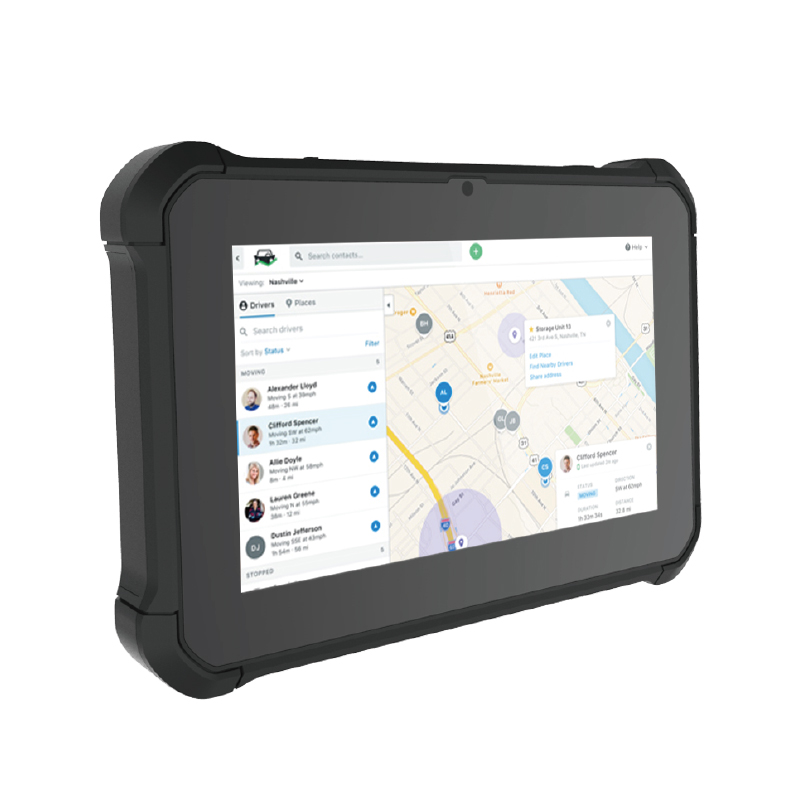

rugged-tablet-mobile-device-s8-1

All-round Ruggedness

TPU material corner drop protection provides all-around protection for thetablet. Compliance with IP65 rating dustproof and waterproof, and anti-vibration and shocks.

Specifications

Model S8
Core Processor Rockchip RK3288W Quad-core ARM Cortex-A17, 1.8GHz
Graphic Integrated 2D/3D Mali-T764 GPU, up to 600MHz
RAM 2GB LPDDR3(4GB optional)
ROM 8GB eMMC(32GB optional)
OS Android 7.1/Linux(optional, Ubuntu 18.04)
Display LCD panel 8-inch TFT-LCD, LED backlight
Resolutions 1024 × 600
Brightness 500 cd/m2
Contrast Ratio 700:1
View Angle (°) 75/75(L/R), 70/75(U/D)
Touch panel G+G multi-touch capacitive touch panel
wireless WiFi IEEE 802.11 a/b/g/n/ac 2.4GHz & 5GHz
Bluetooth Ver 4.0
Cellular 4G optional (LTE, UMTS, GSM)
Positioning Integrated GPS+GLONASS+BEIDOU(optional)
Optional Function Camera 2.0MP CMOS (front)
5.0MP CMOS (back)
NFC Support for:
– ISO/IEC 18092
– ISO/IEC 21481
– ISO/IEC 14443 Type A, Type B, and Generic
B Prime cards (CE mode only for B Prime cards)
– Japanese Industrial Standard (JIS) (X) 6319-4
– ISO/IEC 15693 standards.
– Extended data rates up to 848 kbps for all
G-sensor Built in
Gyroscope Built in
Speaker Built-in stereo speakers(2W/4Ω) x 2
Multimedia Video Encode: 1080P video encoding for H.264 and VP8, MVC
Decode: 4K H.265/H.264 video decoder, 1080P multi video decode
Audio MP3, WMA, OGG, APE, FLAC, AAC etc.
User Interface Onboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1 x USB Host (Type A)
1 x OTG (USB Mini-B type)
1 x RJ45(10/100/1000Mbps)
1 x Combo Audio Jack (audio+mic)
1 x DC IN (9~36V)
1 x POGO PIN (16 PIN)
Extended
I/O ports
(on pigtail cable)
1 x RS422 (RS485 optional)
1 x RS232 + 1x USB Host(2 x RS232 optional)
1 x DC IN (9~36V)
Touch Key Volume-, Volume+, Menu, Home, Return,
Function Key Power, Menu, Home, Return
Power Supply DC In 12V DC (9~36V)
Battery 3.7V 3600mAh, Lithium-Polymer battery pack
Power Consumption Normal mode ≤6W
Charging mode ≤10W
Environment Operating Temp -20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp -20°C~80°C
IP Rating IP65
Mechanical Dimensions 238(L)x160(W)x31(H)mm
Weight 1.1kg (tablet only)
Mount VESA, RAM
Accessories Standard AC/DC adaptor or car power adaptor(optional)
Optional Docking, extended cable
