DT8 Rugged Tablet: 8-Inch Android Tablet Built for Industrial and Vehicle Applications
Compact, Rugged, and Rich in Interfaces
The DT8 is a high-performance 8-inch rugged tablet designed for harsh industrial environments and vehicle-mounted scenarios. Running on Android 14 OS, powered by the Qualcomm® Snapdragon™ SLM920 octa-core processor, and featuring an up to 1000-nit sunlight-readable screen and flexible I/O, DT8 delivers reliable computing on the move—making it the ideal Android rugged tablet for fleet management, telematics and real-time mobile applications.

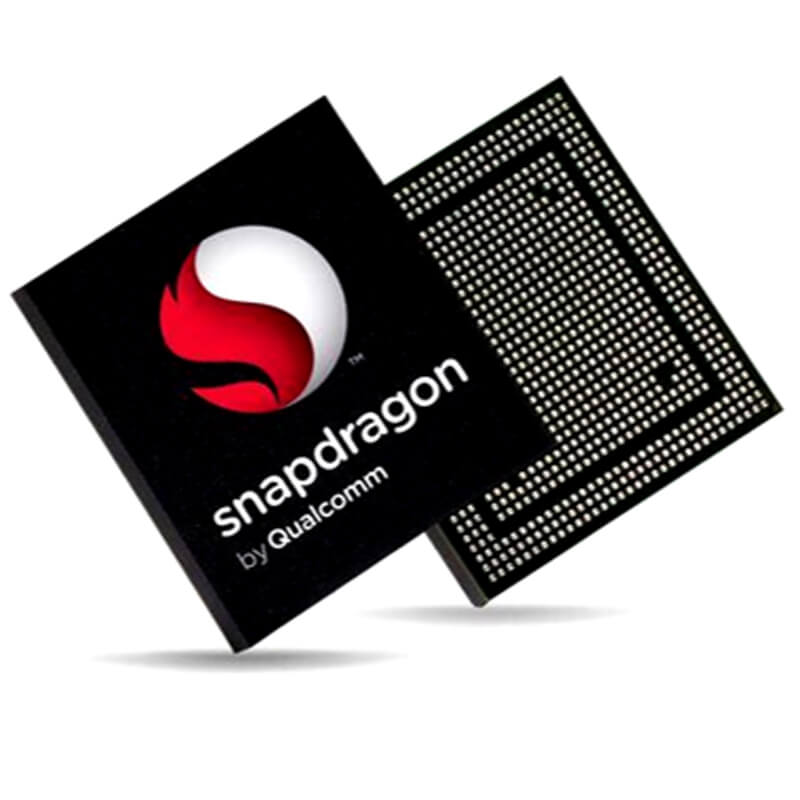

Qualcomm® Snapdragon™ SLM920 CPU
Octa-core processor with integrated Qualcomm GPU, ideal for industrial Android deployments.

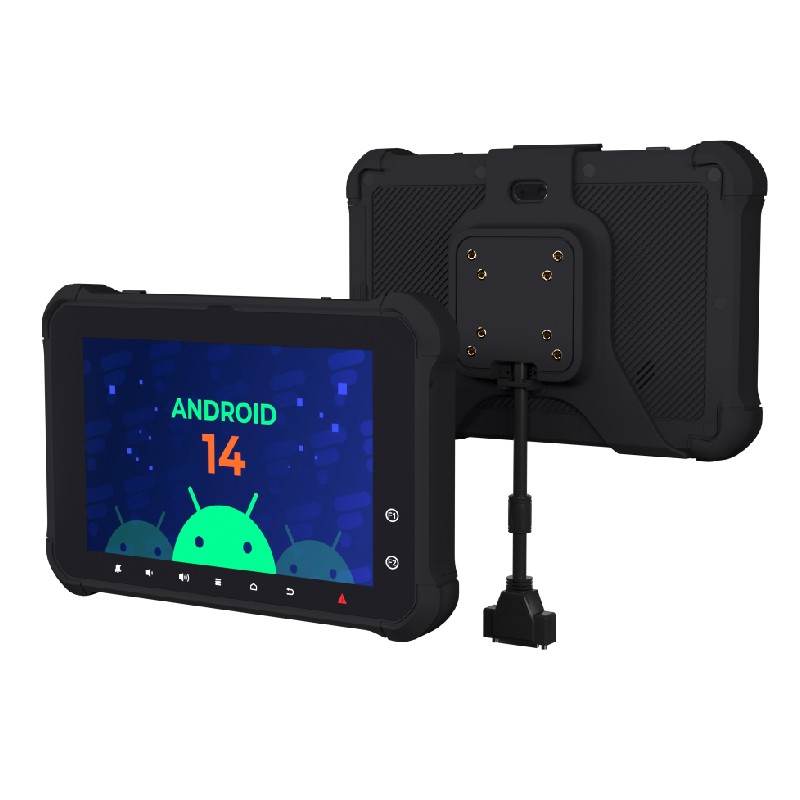

Android 14 OS
Offering improved stability, security, and app compatibility for enterprise applications.

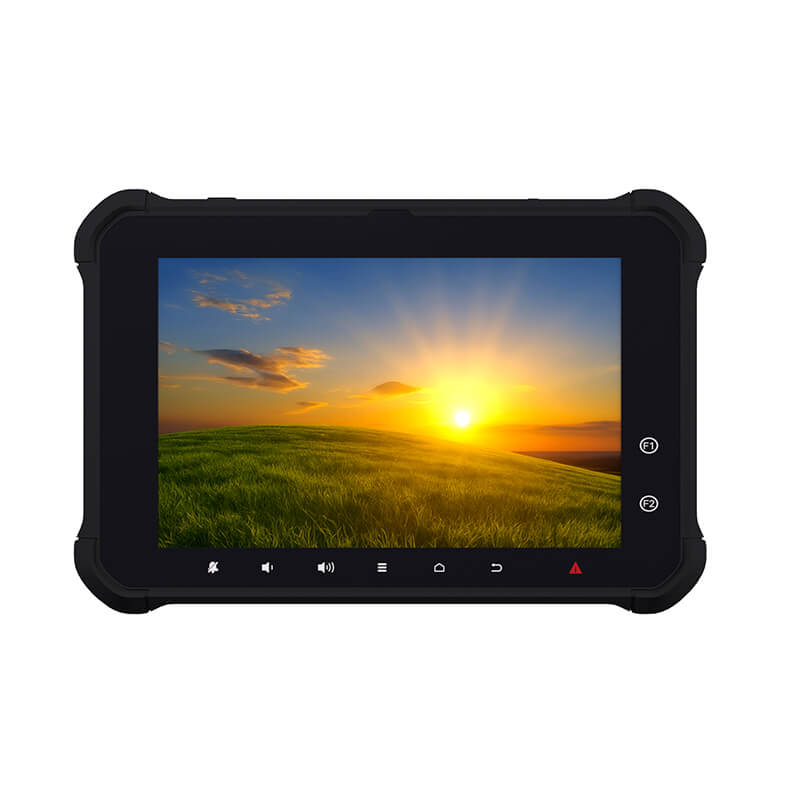

8-Inch Sunlight-Readable Display
A high-brightness LCD panel up to 1000 nits offers clear visibility even under direct sunlight—perfect for outdoor or in-vehicle usage.
Flexible Memory Options
Available in 4GB RAM + 64GB storage or 8GB RAM + 128GB storage, providing flexibility for different application requirements.
Reliable Connectivity, Wherever You Go
Stay connected with dual-band Wi-Fi (2.4GHz & 5GHz), Bluetooth 5.0, and optional 4G LTE.
Built-in GPS + GLONASS + BeiDou ensures reliable global positioning for any mobile deployment.
Extensive I/O Connectivity
Built-in ports include:
● CAN bus for vehicle diagnostics and fleet data
● RS232 / RS422 for serial device integration
● GPIO for trigger and sensor inputs
● Ethernet (RJ45) for stable wired communication
Advanced Video Input Support

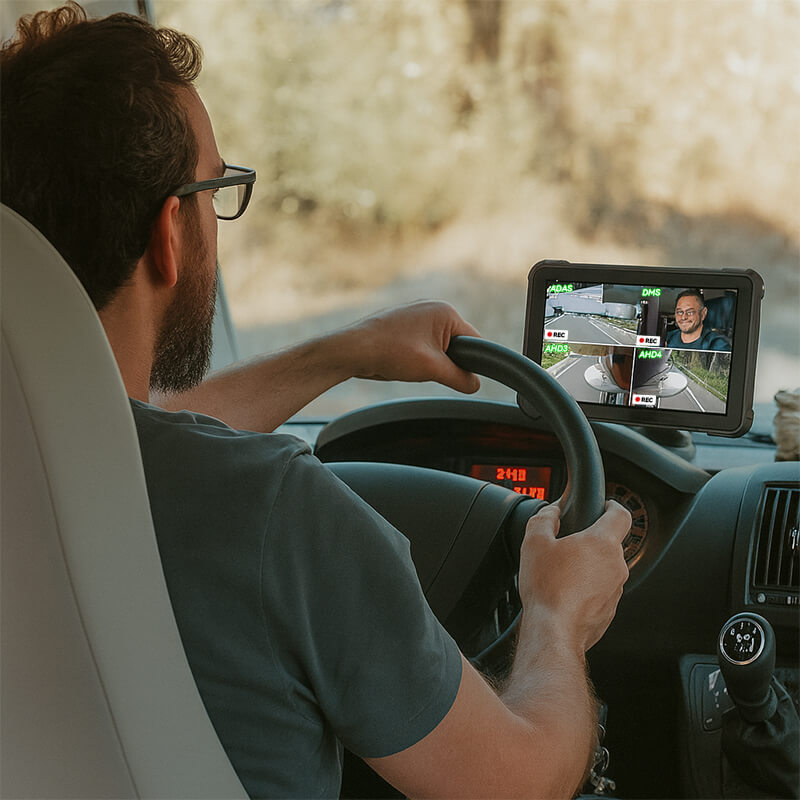

Supports up to 4 AHD cameras, enabling real-time video surveillance, safety monitoring, or driver behavior analysis in logistics and fleet operations.

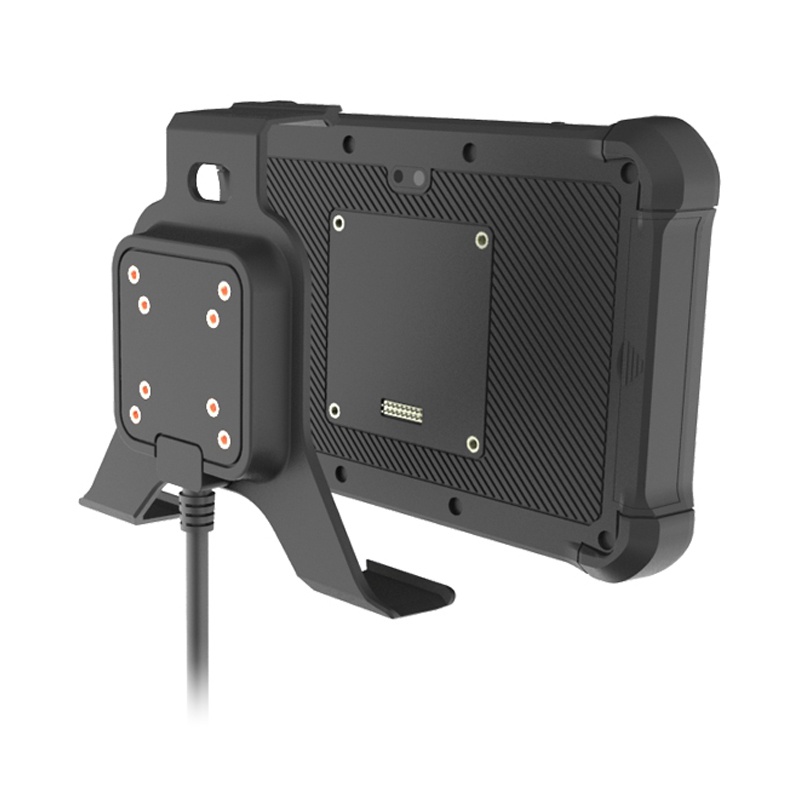

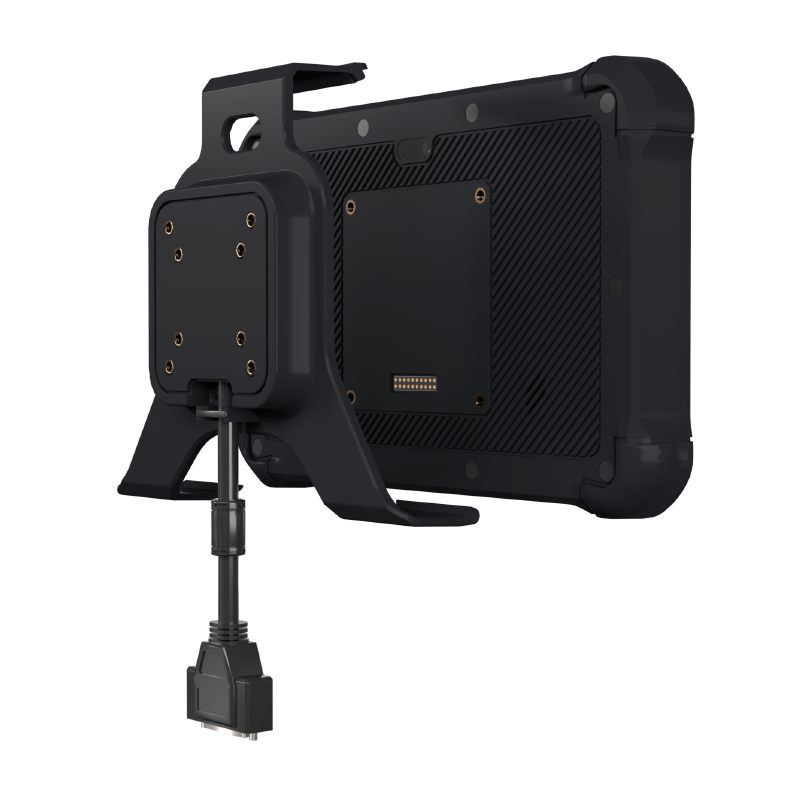

Docking-Ready Removable Design
The DT8 supports a rugged docking system with removable mounting, ideal for mobile deployment scenarios such as forklifts, trucks, and service vehicles.

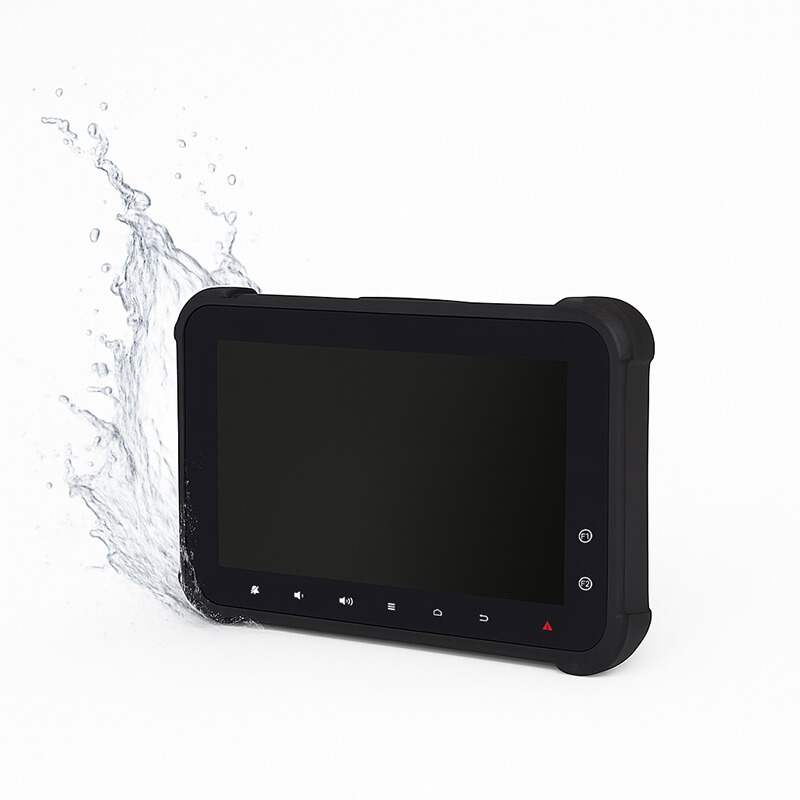

IP65 Water & Dust Resistance
Sealed enclosure design to protect against water jets, dust, and vibrations—ideal for outdoor, warehouse, and harsh vehicle environments.
Built for Vehicle and Industrial Tablet Applications
DT8 is optimized for a wide range of professional use cases:
● Forklift fleet operations and warehouse automation
● Fleet dispatching and ELD/HOS compliance
● Mining, construction, and logistics vehicle terminals
● Agriculture equipment control and outdoor fieldwork
● In-vehicle camera monitoring and MDVR systems
Specifications
| Model | DT8 | |
| Core | Processor | Snapdragon SLM920 Octa-Core QCM6125 |
| GPU | Qualcomm® Adreno™ 610 | |
| RAM | 4GB; 8GB (optional) | |
| ROM | 64GB; 128GB (optional) | |
| OS | Android 14 | |
| Display | LCD panel | 8-inch IPS, LED backlight |
| Resolutions | 1280 × 800; 1920 × 1200 (optional) | |
| Brightness | 500 nits (typical); 700/1000 nits (optional) | |
| Contrast Ratio | 800:1 | |
| View Angle (°) | 85/85(L/R), 85/85(U/D) | |
| Touch panel | Capacitive 5-point multi-touch screen P-CAP touch technology | |
| wireless | WiFi | IEEE 802.11 a/b/g/n /ac Standard Supports 2.4GHz & 5GHz |
| Bluetooth | Support Bluetooth 5.0 BLE | |
| Cellular | 4G LTE | |
| Positioning | Support GPS/GLONASS/BEIDOU | |
| Optional Function | Camera | 5.0MP CMOS (front) |
| 8.0MP CMOS (rear) | ||
| NFC | ISO/IEC 14443 A&B, MiFare® 1K/4K, FeliCa, NFC Forum Type 1–5, ISO/IEC 15693 |
|
| MIC | Internal microphone | |
| Light Sensor | Optional | |
| G-sensor | Built in | |
| Gyroscope | Built in | |
| Speaker | Output speaker: 8Ω/2W | |
| Multimedia | Video | Support 4K 10bits VP9/H265/H264 |
| Support VC-1, MPEG-1/2/4, VP8, H.264 video decoder | ||
| Audio | MP3, Record | |

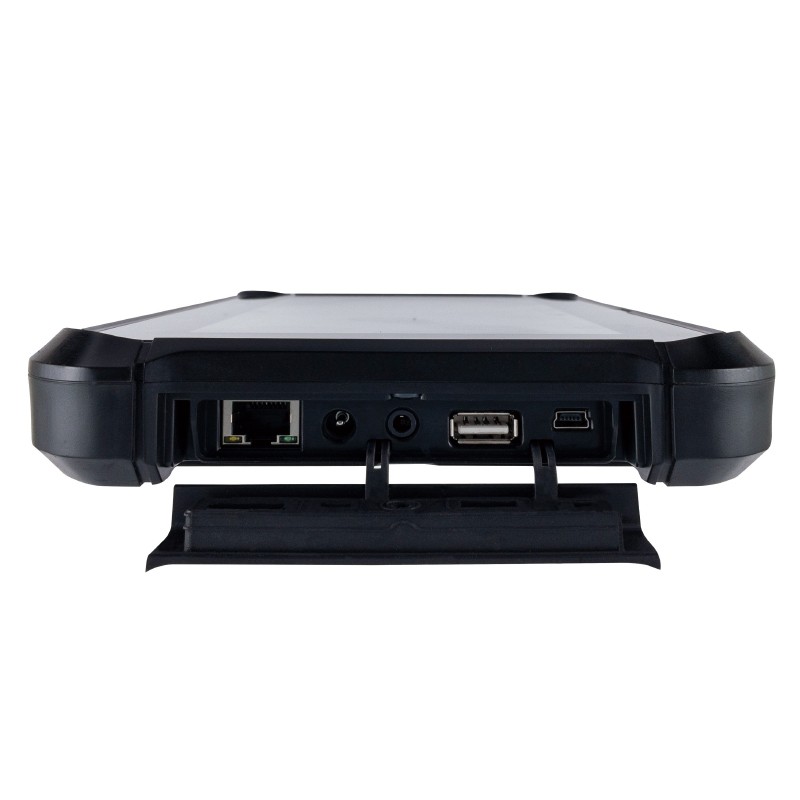

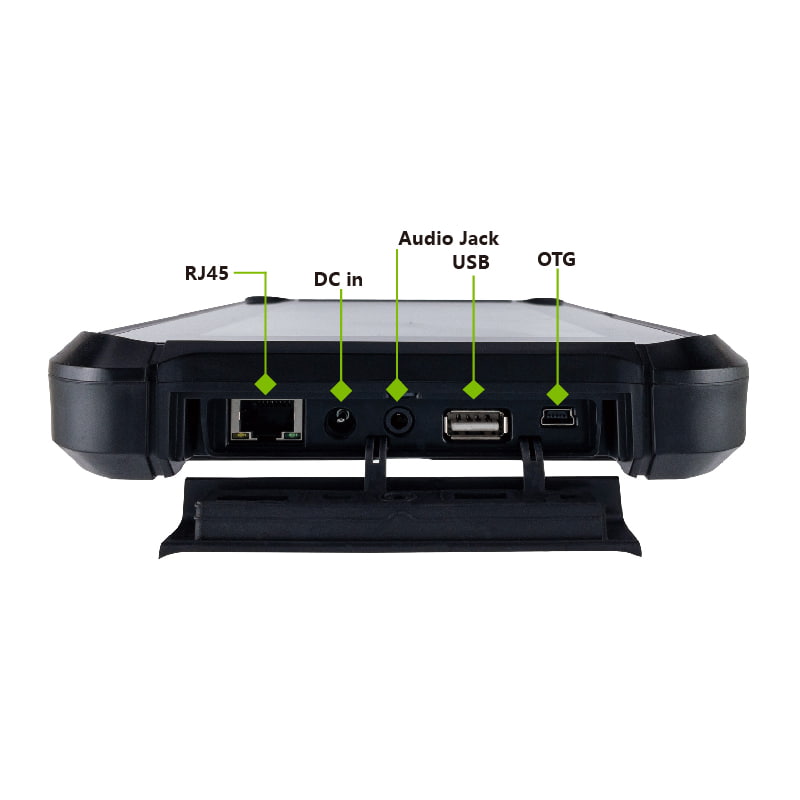

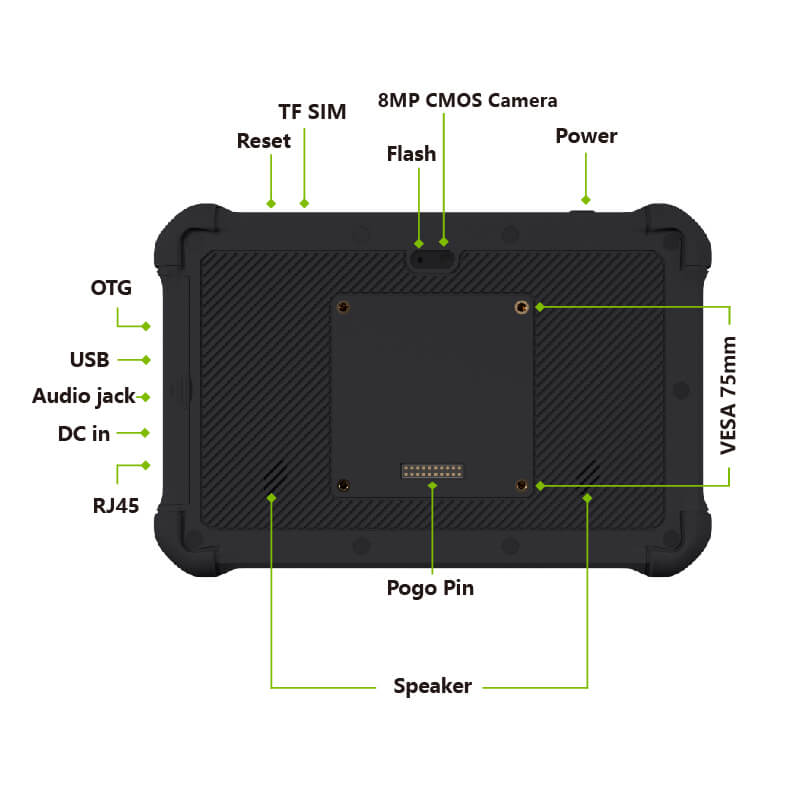

| User Interface | Onboard I/O ports | 1 x TF cardslot |
| 1 x SIM cardslot | ||
| 1 x RJ45(100 or 1000Mbps) | ||
| 1 x Reset Button | ||
| 1 x 3.5mm Audio Jack | ||
| 1 x USB host (type A) | ||
| 1 x OTG(MINI USB type) | ||
| 1 x Power Jack(9~36V) | ||
| 1 x POGO PIN (20 PIN) | ||

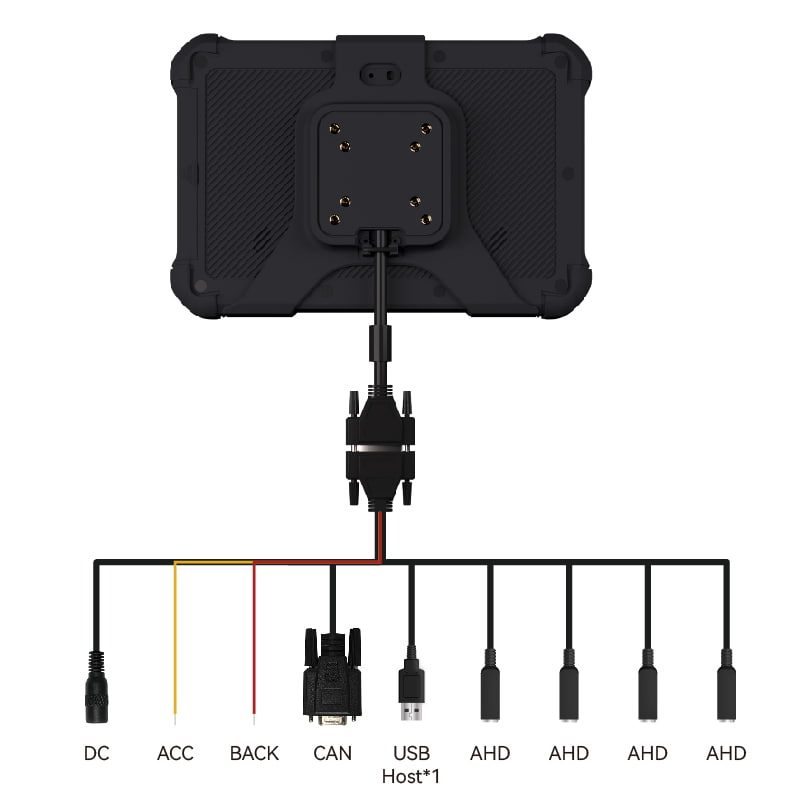

| Extended I/O ports (extension cable) |
1 x ACC Input | |
| 1 x Reverse Gear Trigger | ||
| 1 x CAN bus | ||
| 1 x USB Host | ||
| 4 x AHD Camera In | ||
| 1 x DC in (9~36V) | ||
| 1 x RS232 | ||
| 1 x RS422/RS485 | ||
| 1 x RJ45 | ||
| 1 x GPIO | ||

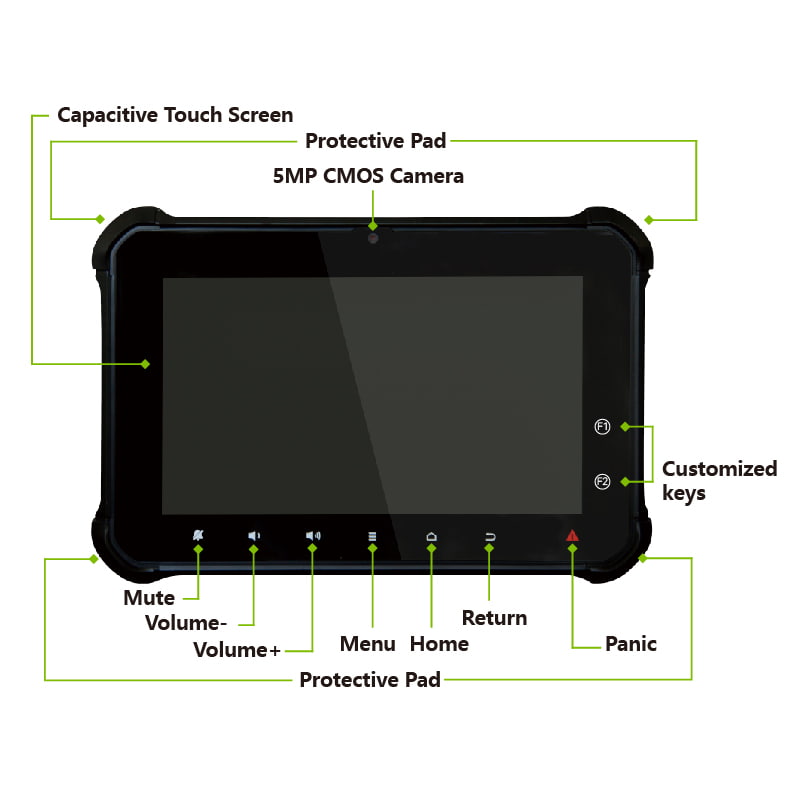

| Function Key | Volume-, Volume+, Menu, Home, Return, Panic, Power, Reset, F1, F2 |
|
| Power Indicator | Red(charging), Green(full) | |
| Power Supply | DC In | 12V DC (9~36V) |
| Battery | 3.7V 5000mAh, Lithium-Polymer battery pack | |
| Power Consumption | Normal mode | ≤9W |
| Charging mode | ≤12.5W | |
| Environment | Operating Temp | -20°C~70°C (w/o battery) |
| -10°C~60°C (w/ battery) | ||
| Storage Temp | -35°C to +80°C (no battery) | |
| IP Rating | IP65 | |
| Mechanical | Dimensions | 238(L) x 160(W) x 31(H) mm |
| Mount | VESA, RAM | |
DT8 Rugged Tablet FAQ
The DT8 is designed for demanding environments such as fleet management, public transport, logistics, mining, and warehouse operations. It’s ideal for vehicle-mounted applications and video surveillance.
Yes. It supports up to 4 AHD cameras, making it suitable for real-time monitoring, safety applications, and driver behavior analysis.
The DT8 features 4G LTE, dual-band Wi-Fi (2.4GHz & 5GHz), and Bluetooth 5.0 for reliable data transmission in various field scenarios.
Yes, it comes in two configurations:
4GB RAM + 64GB storage
8GB RAM + 128GB storage
This gives flexibility depending on application requirements.
The DT8 runs Android 14 and supports future upgradeability.
Absolutely. It supports GPS + GLONASS + Beidou for accurate positioning and navigation.
With an IP65 rating, rugged housing, and wide temperature support (-20°C to 70°C), it is built for harsh industrial and vehicle environments.
Yes. It features a dockable/removable design that integrates easily with various vehicle mounts and power systems.
Yes. WAYSION offers full hardware and software customization for OEM/ODM clients with over 20 years of industry experience.
