V7

●Rugged enclosure design with IP65 rating
●Rockchip PX3 Quad-core ARM Cortex-A9, 1.6 GHz
●Android 7.1 operating system
●Integrated 2D/3D Mali-400MP4 GPU, up to 600 MHz
●Built-in 0.3 MP CMOS front camera, built-in stereo speakers(2W.8Q)x2
●Built-in 4G/3G cellular, WiFi, Bluetooth, GPS+GLONASS+BEIDOU (optional)
●Built-in and Extended l/0 interfaces USB Type A, TF(up to 128 GB), RJ45, 2xRS232,OTG

Category: Tags: , , , ,


Download

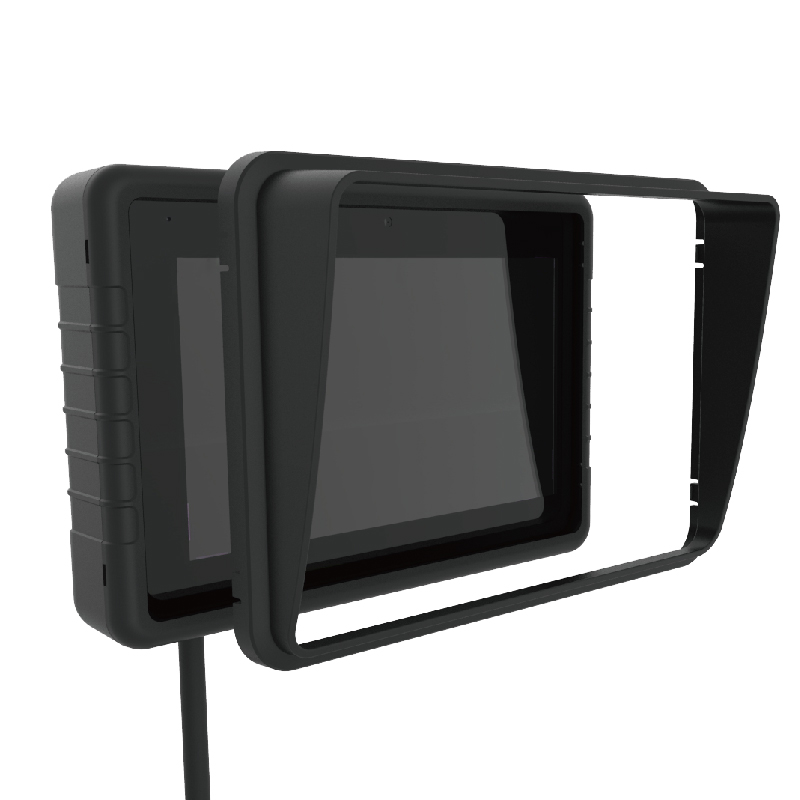

Equipping the in-vehicle workforce with digitalization to keep in coordination with their team, could add up to an immense boost in productivity. Waysion recognizes the importance of connectivity to the workers of the vehicle industry. V7 Mobile Data Terminal of Waysion is the technological revolution in the vehicle industry. V7 is an Android-based 7-inch mobile data terminal that is powered by Rockchip PX3 ARM® Cortex™-A9 quad-core processor. The newly designed enclosure provdes a good ingress protection rating of IP65. With a sunshade hood, it can work in cab during the daytime. V7 integrates a variety of communication modules such as Wi-Fi, Bluetooth, 4G/3G cellular, and GPS. For more peripheral devces it has a pigtail cable to meet various l/O ports, like RS232, RJ45, USB, OTG, etc.

V7-23

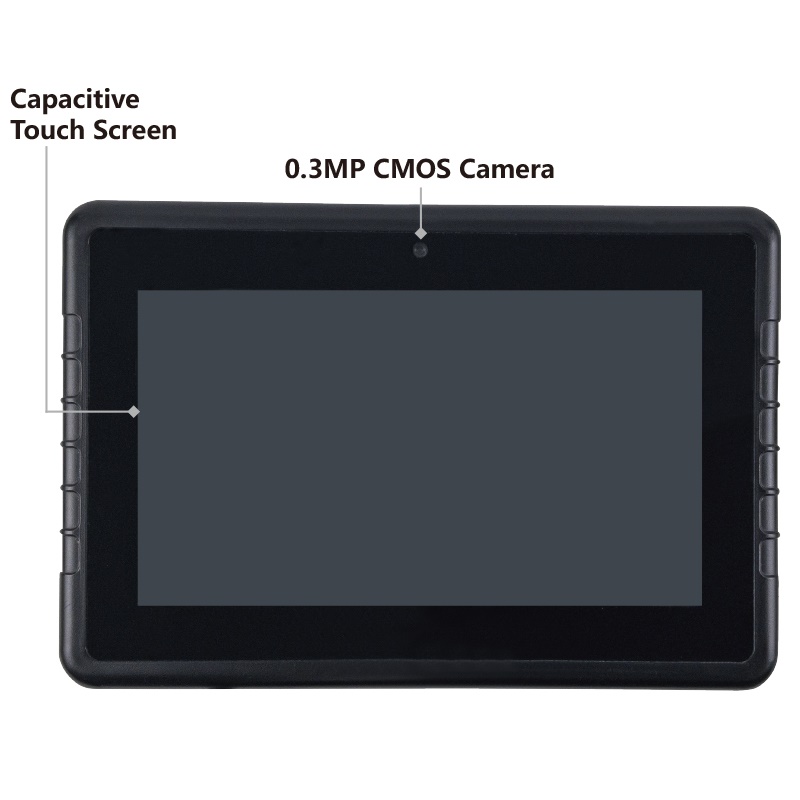

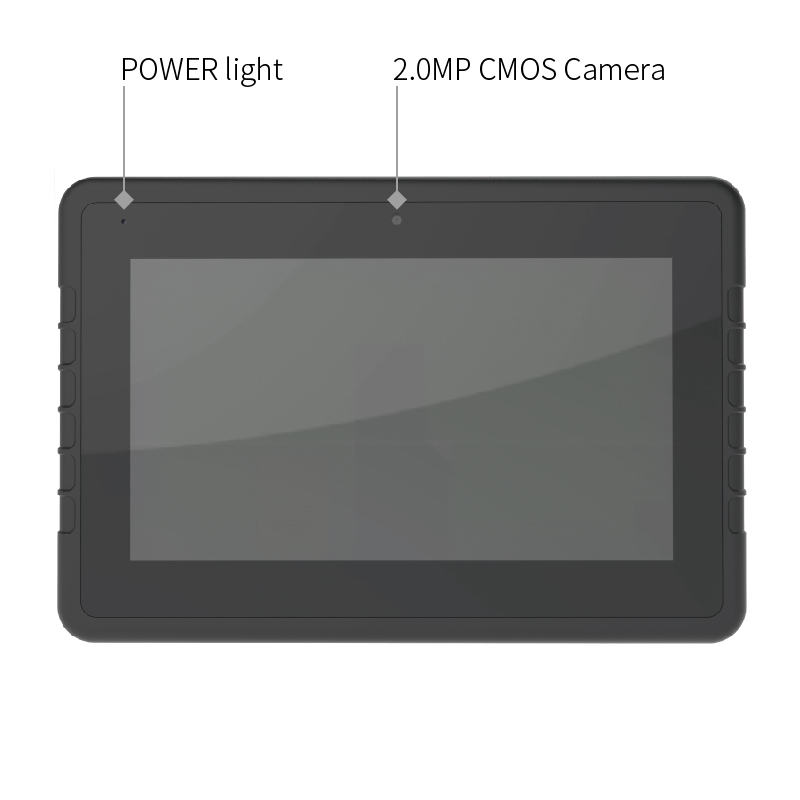

Ultra-Durable LCD Protection

V7 has the 7-inch LCD screen with a capacitive multi-touch panel. That means no stress over the scratch, drop, or impact with super-strong insurance construction. While the remainder of your gadget is effectively and completely secured by a strong metal, elastic, and plastic fenced-in area.

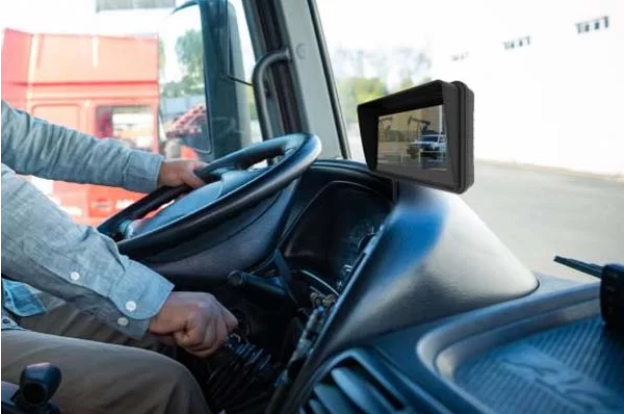

Enhance Fleet Efficiency

Waysion in-vehicle tablets present the solution basement to streamlinethe workflow, either fleet and logistics tracking, vehicle dispatchingregular maintenance, or possible immediate response to faults andfailures.

v7-2
V7-8

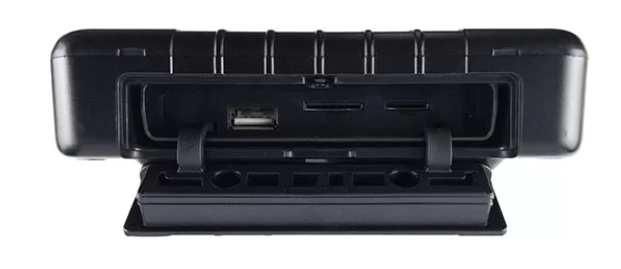

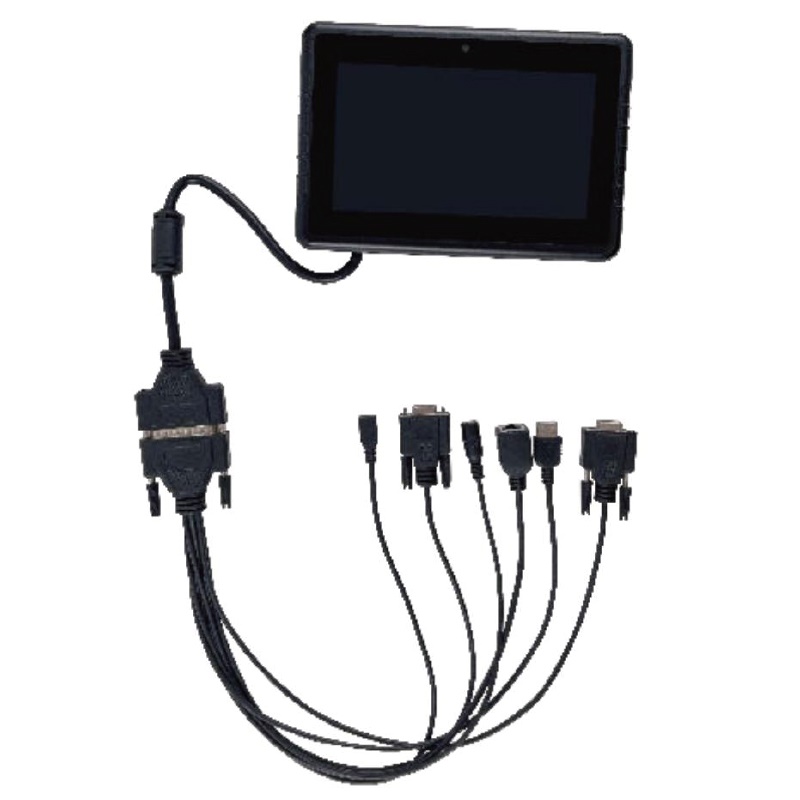

Multiple Connections for External Equipment

V7 also provides multiple connections for external equipment. lt can beextended with USB, OTG, RS232 Ethernet, etc. Through the extension ofMDT with other peripherals, a user can feel a more enjoyable experience

Rugged Design

Water & dustproof design can meet the in-cab harshest environment. Nomatter in the hottest Middle East, or the coldest North Europe, V7 can stillwork smoothly to help drivers.

V7s-5

Specifications

Model V7
Core Processor Rockchip PX3 Quad core ARM Cortex-A9 1.6GHz
Graphic Integrated 2D/3D Mali-400MP4 GPU UP to 600MHz
RAM 1GB DDR3(2GB optional)
ROM 8GB eMMC(16GB optional)
OS Android 7.1
Display LCD panel 7-inch TFT-LCD, LED backlight
Resolutions 1024 × 600
Brightness 500 cd/m2
Contrast Ratio 800:1
View Angle (°) 75/75(L/R), 70/75(U/D)
Touch panel G+G multi-touch capacitive touch panel
wireless WiFi IEEE 802.11 a/b/g/n 2.4GHz
Bluetooth Ver 4.0 (optional)
Cellular 4G optional (LTE, UMTS, GSM)
Positioning Integrated GPS+GLONASS+BEIDOU(optional)
Multimedia Video Video Decode: 30fps1080P(H.264/MPEG-4/VP8/H.265 DivX4/5/6) 30fps WVGA(H.263)
Video Encode: 30fps1080P(H.264), 30fps WVGA(MPEG-4/VP8)
Audio MP3, WMA, OGG, APE, FLAC, AAC etc.
Mechanical Dimensions 200(L)x136(W)x36(H) mm
Weight 0.79kg

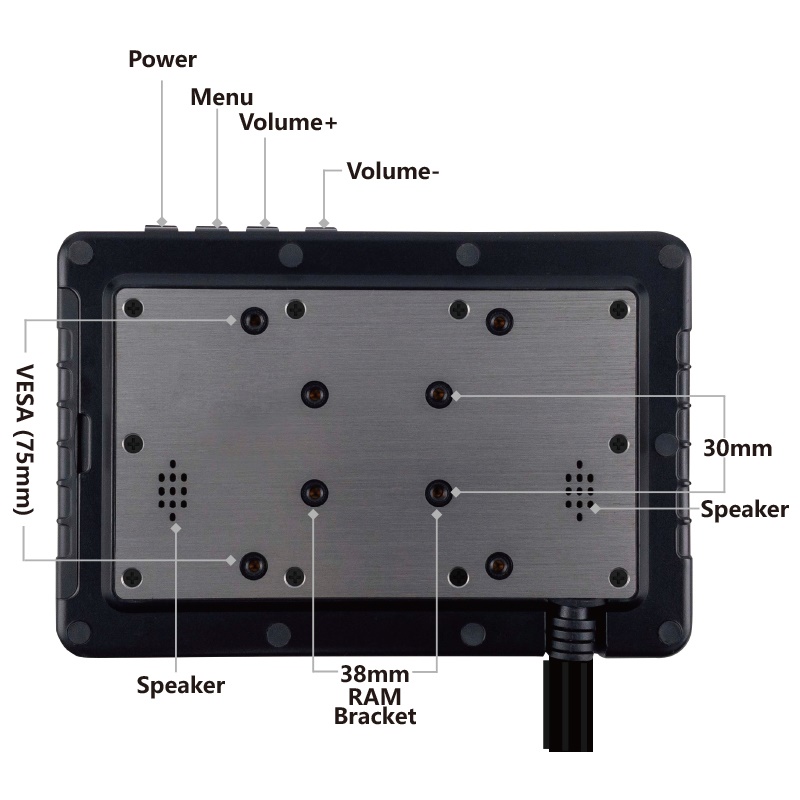

Mount 75x75mm VESA or 38x30mm RAM compliant
Certification CE/E-mark/RCM compliant
Accessories Standard AC/DC adaptor or car power adaptor(optional)
Extended cable
Optional Sunshade
User Interface Speaker Built-in speaker(2W, 8Ω) x 2
Microphone Internal microphone
Camera 0.3MP CMOS (front)

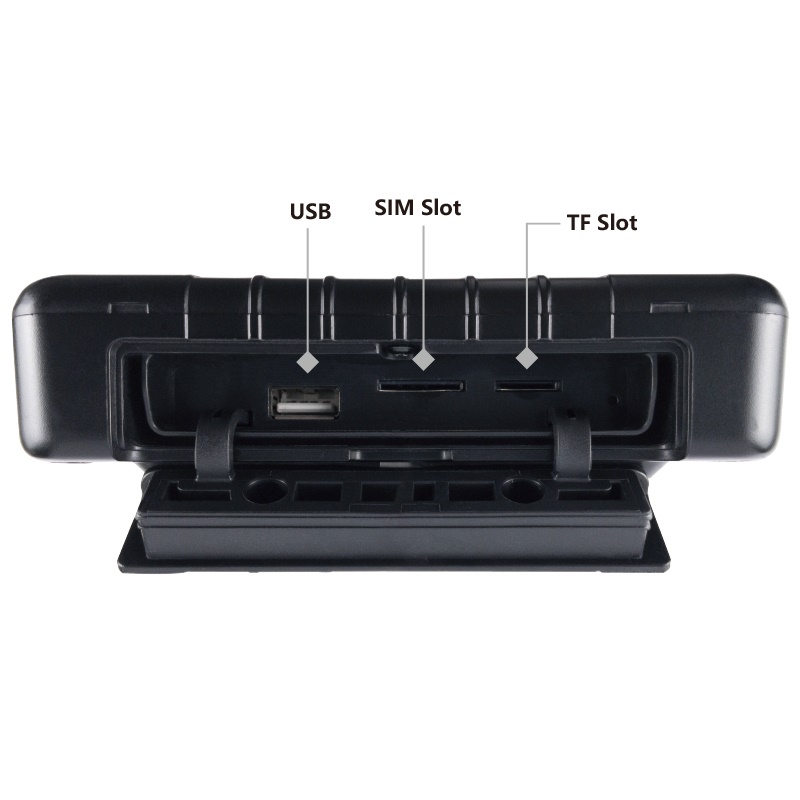

Onboard
I/O ports
1 x TF cardslot(up to 128GB)
1 x SIM cardslot
1x USB Host(Type A)

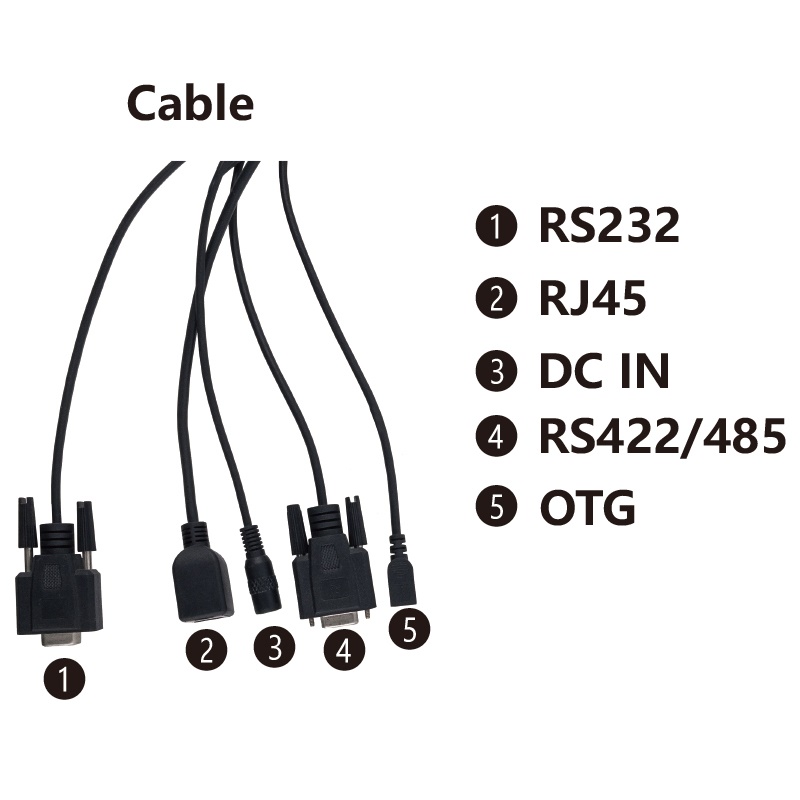

Extended
I/O ports
(on pigtail cable)
1x RJ45
2x RS232
1x USB Host (Type A)
1x DC IN
1x OTG
Function Key Power, Home, Volume+, Volume-, Reset
Power Light LED light
Power Supply DC In 12V DC (9~36V)
Battery 3.7V 1800mAh, Lithium-Polymer battery pack
Power Consumption Normal mode ≤6W
Charging mode ≤10W
Environment Operating Temp -20°C~70°C (w/o battery)
-10°C~50°C (w/ battery)
Storage Temp -20°C~80°C
IP Rating IP65
